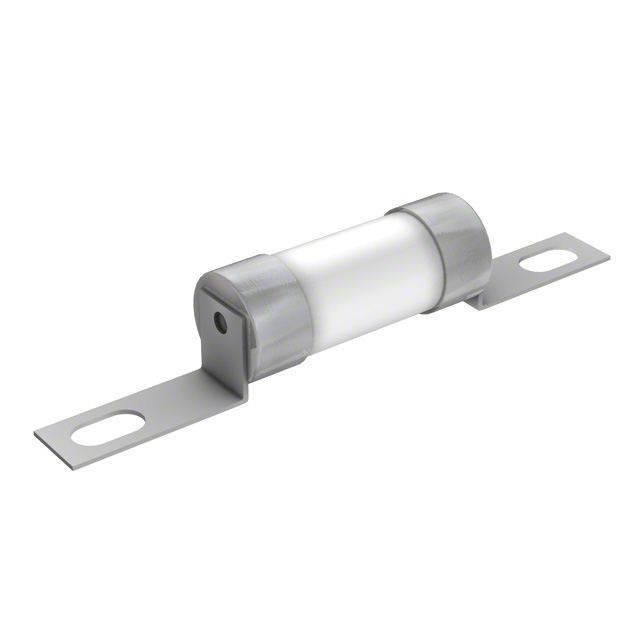

AAO4
ActiveEaton - Electronics Division
FUSE, HRC, BOLTED TAG, 4A, 550VAC ROHS COMPLIANT: YES
AAO4
ActiveEaton - Electronics Division
FUSE, HRC, BOLTED TAG, 4A, 550VAC ROHS COMPLIANT: YES
Description
General part information
AAO4
4A 550 VAC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | AAO4 |
|---|---|
| Applications | Electrical, Industrial |
| Breaking Capacity | 80 kA |
| Current Rating | 4 A |
| Fuse Type | Cartridge |
| Melting I²t | 8 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 0.539 in |
| Size / Dimension Length | 1.378 in |
| Voltage Rating - AC | 550 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
