Description
General part information

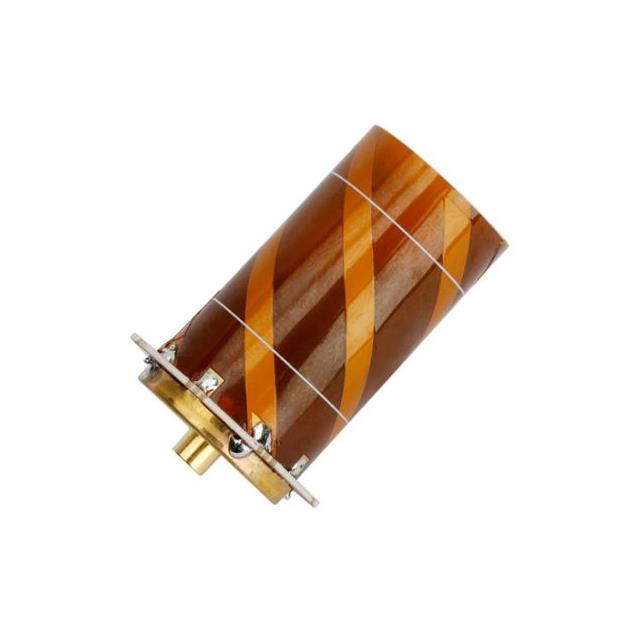

33-HC610E-28
RF ANTENNA Iridium® Helical MCX Female Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 33-HC610E-28 |
|---|---|
| Antenna Type | Helical |
| Applications | Iridium® |
| Features | LNA, Filter |
| Frequency (Center/Band) | 1.62125 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.6265 GHz |
| Frequency Range (Min) | 1.616 GHz |
| Gain | 3.7 dBic |
| Height (Max) | 1.524 in |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | MCX Female |
| VSWR | 1.8 |
