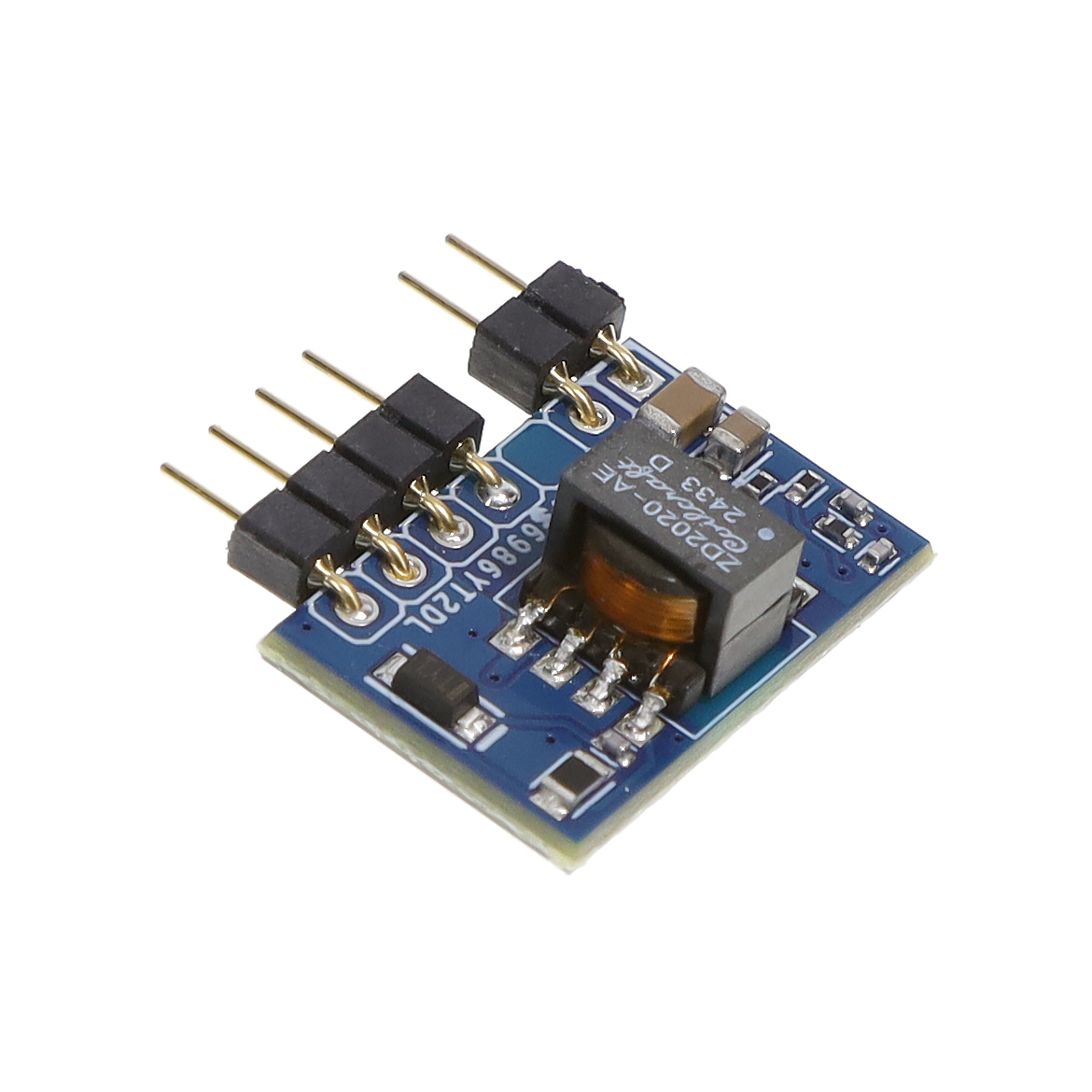

STEVAL-6986YT2DL
ActiveSTMicroelectronics
EVAL BOARD FOR A69868I
STEVAL-6986YT2DL
ActiveSTMicroelectronics
EVAL BOARD FOR A69868I
Description
General part information
STEVAL-6986YT2DL
EVAL BOARD FOR A69868I
Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-6986YT2DL |
|---|---|
| Contents | Board |
| Frequency - Switching | 250 kHz |
| Isolated Output Count | 2 count |
| Main Purpose | Step Up or Down, DC/DC |
| Output Type | Isolated |
| Power - Output | 5 W |
| Regulator Topology | Buck-Boost |
| Total Output Count | 2 |
| Utilized IC / Part | A69868I |
| Voltage - Input | 24 V |
| Voltage - Output | 20 V, -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
