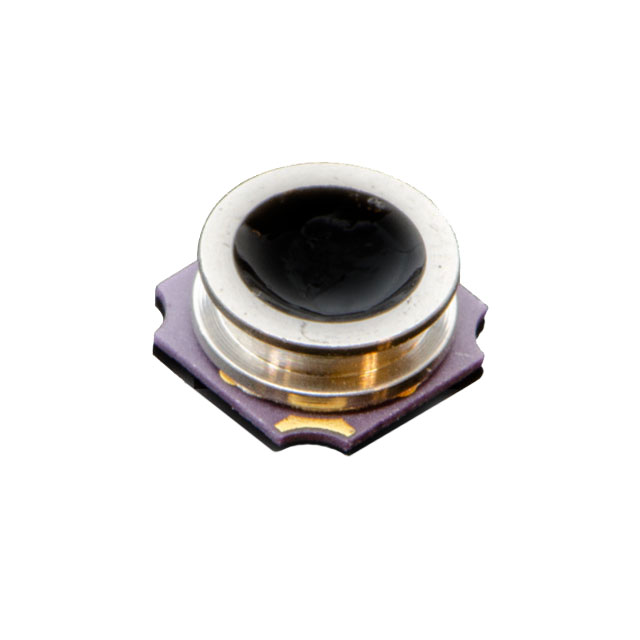

ICP-10125
ObsoleteTDK Corporation
SENSOR 15.95PSIA 10SMD
ICP-10125
ObsoleteTDK Corporation
SENSOR 15.95PSIA 10SMD
Description
General part information
ICP-10125
Pressure Sensor 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) Absolute 10-SMD Module
Technical Specifications
Parameters and characteristics for this part
| Specification | ICP-10125 |
|---|---|
| Accuracy | 0.015 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure (Max) | 15.95 PSI |
| Operating Pressure (Min) | 4.35 PSI |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | I2C |
| Package / Case | 10-SMD Module |
| Package Name | 10-SMD |
| Port Style | No Port |
| Pressure Type | Absolute |
| Voltage - Supply (Maximum) | 1.89 V |
| Voltage - Supply (Minimum) | 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
