Specification	Q-0802N0008072i

1st Connector	BNC Jack
1st Connector Mounting Feature	Front Side Nut, Bulkhead
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG, 58
Color	Black
Features	Shielded
Frequency - Max	4 GHz
Length	72 in
Overall Impedance	50 Ohms
Style	N-Type, BNC

RF Cable Assemblies Series

...

Part	Frequency - Max	Overall Impedance	1st Connector Mounting Type	2nd Connector Mounting Type	1st Connector	Features	1st Contact Gender	Color	Cable Impedance	Style	Cable Type	2nd Contact Gender	Connector Impedance	2nd Connector	Length	2nd Connector Mounting Feature	Cable Type Size	Length (ft)

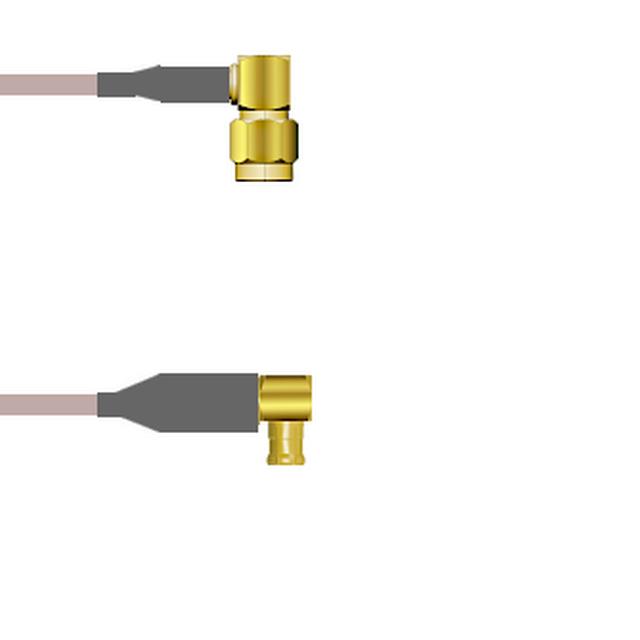

McGill Microwave Systems Q-35017000R018I	3 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Right Angle SMA Plug	Shielded	Male	Copper	50 Ohms	MCX SMA	316 DS RG	Male	50 Ohms	MCX Plug Right Angle	18 in
McGill Microwave Systems Q-0B03Y000H012i	4 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	BNC Jack	Shielded	Female	Copper		BNC SMB	142 RG	Male		SMB Plug	12 in
McGill Microwave Systems Q-2F03U0008072i	4 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Right Angle SMB Plug	Shielded	Female	Black		N-Type SMB	58 RG	Male		N-Type Plug Right Angle	72 in
McGill Microwave Systems Q-0J02P0005009i	4 GHz	50 Ohms	Free Hanging (In-Line)	Panel Mount	BNC Plug	Shielded	Male	Copper		BNC SMA	316 RG	Female		Right Angle SMA Jack	228.6 mm	Bulkhead - Front Side Nut
McGill Microwave Systems Q-0D01N0005006i	4 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	BNC Plug Right Angle	Shielded	Male	Copper		BNC MMCX	316 RG	Male		MMCX Plug Right Angle	0.5 ft

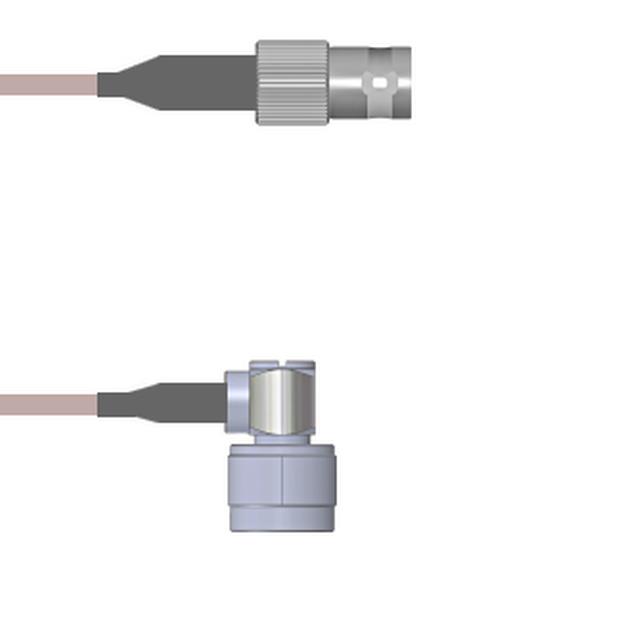

McGill Microwave Systems Q-0B02G000H048i	4 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	BNC Jack	Shielded	Female	Copper		BNC N-Type	142 RG	Male		N-Type Plug Right Angle	48 in
McGill Microwave Systems Q-3304D0001006I	3 GHz	50 Ohms	Free Hanging (In-Line)	Panel Mount	Right Angle SMA Plug	Shielded	Male	Copper	50 Ohms	SMA TNC	178 RG	Female	50 Ohms	TNC Jack	0.5 ft	Bulkhead - Front Side Nut
McGill Microwave Systems Q-7004Z000M060I	6000 MHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	RP-SMA Jack	Shielded	Male	Black	50 Ohms	RP-SMA TNC	LMR	Male	50 Ohms	Right Angle TNC Plug	1524 mm		240	5 ft
McGill Microwave Systems Q-3400Q0003072I	1 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	HD-BNC Jack	Shielded	Female	Black	50 Ohms	HD-BNC SMA	174 RG	Male	50 Ohms	Right Angle SMA Plug	72 in
McGill Microwave Systems Q-0F02G000H036i	4 GHz	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	BNC Plug Right Angle	Shielded	Male	Copper		BNC N-Type	142 RG	Male		N-Type Plug Right Angle	36 in
