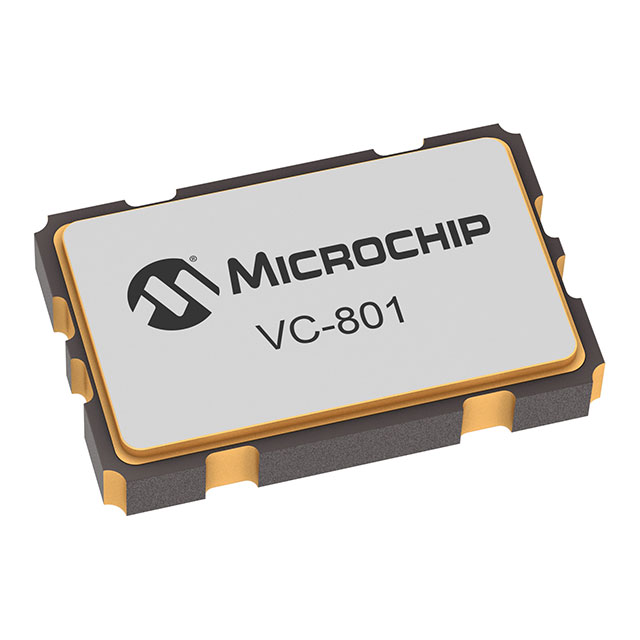

VC-801-EAC-KAAN-32K7680000
ActiveMicrochip Technology
OSCILLATOR CMOS SMD
VC-801-EAC-KAAN-32K7680000
ActiveMicrochip Technology
OSCILLATOR CMOS SMD
Description
General part information
VC-801-EAC-KAAN-32K7680000
32.768 kHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | VC-801-EAC-KAAN-32K7680000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 30 µA |
| Current - Supply (Max) | 5 mA |
| Frequency | 0.032768 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.055 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
