3-1377173-1
ActiveTE Connectivity AMP Connectors

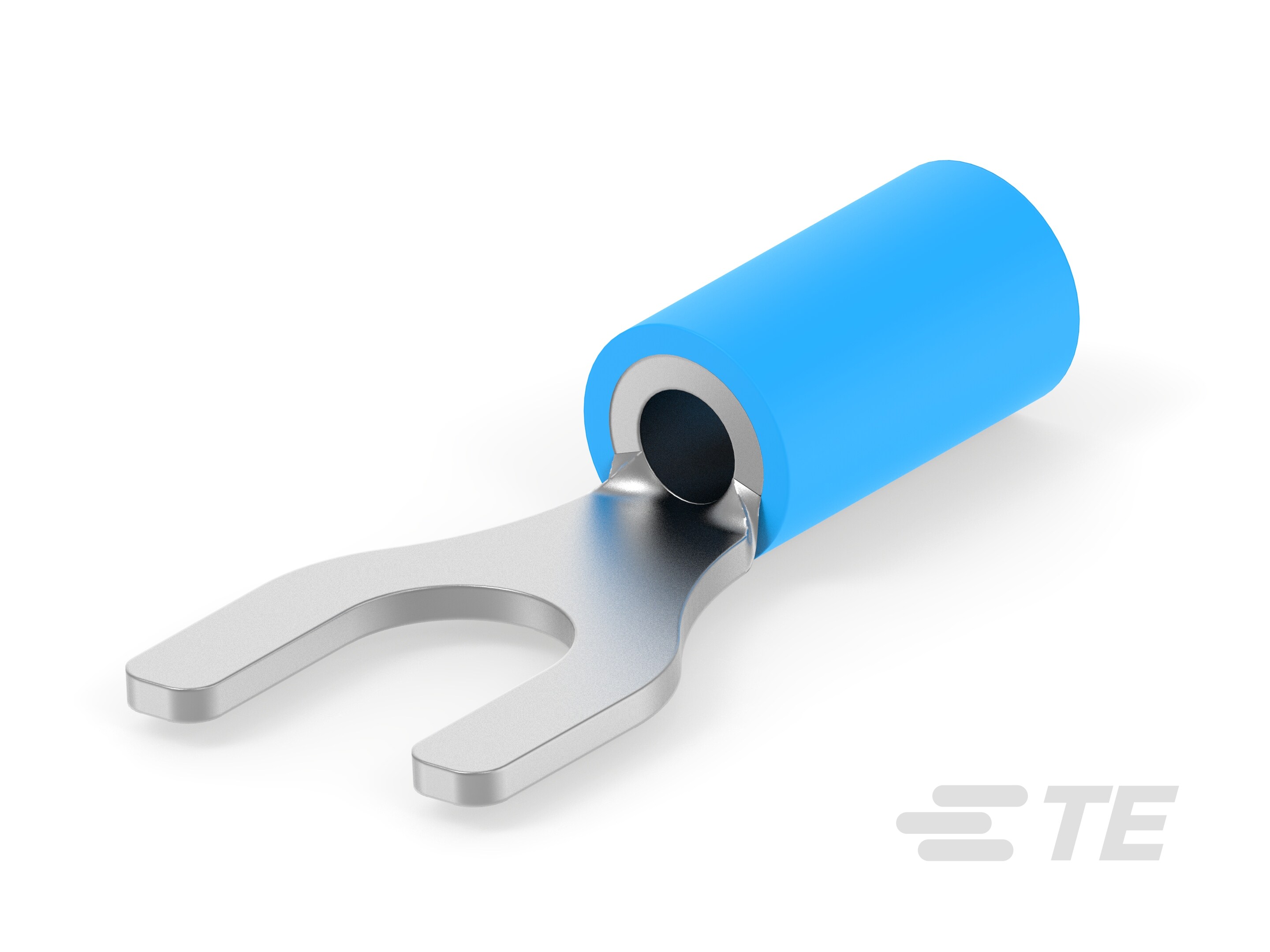

CONN SPADE TERM 14-16AWG M5 BLU
3-1377173-1
ActiveTE Connectivity AMP Connectors
CONN SPADE TERM 14-16AWG M5 BLU
Description
General part information
3-1377173-1
Spade Flange Tongue Terminal, 16 – 14 AWG, M5 Stud, 5.21 mm [.205 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-1377173-1 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 0.886 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M5 Stud, M5 |
| Terminal Type | Standard |
| Termination | Crimp |
| Width - Outer Edges | 0.385 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
