Description
General part information
XS518B1DAL2

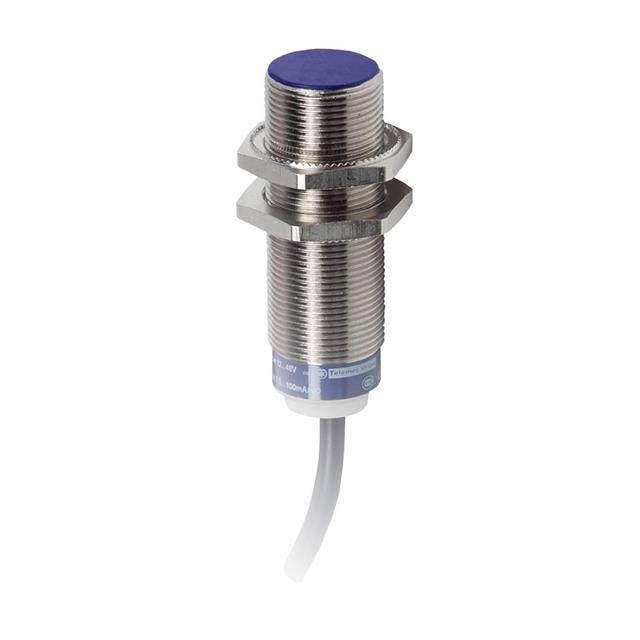

Inductive Proximity Sensor 0.197" (5mm) IP68, IP69K Cylinder, Threaded - M18
Technical Specifications
Parameters and characteristics for this part
| Specification | XS518B1DAL2 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68, IP69K |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NO, 2-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance | 0.197 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 48 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
