Description
General part information
709296001002006

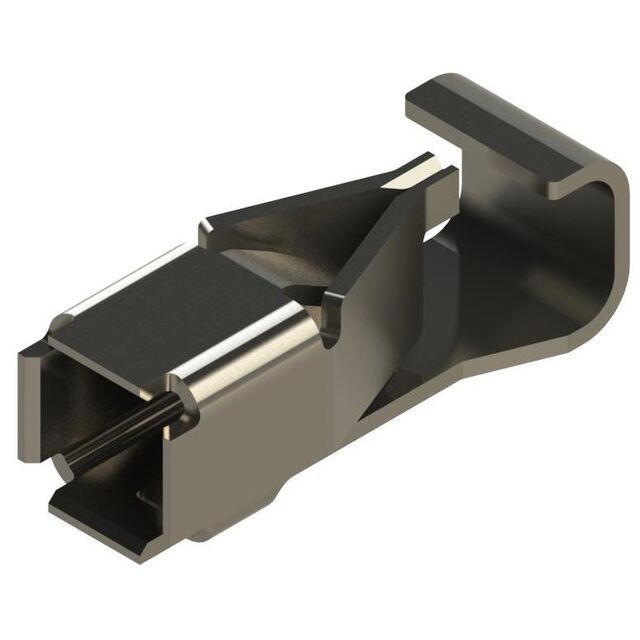

22-28 AWG SSL Contact, Poke-In Wire Solder Surface Mount, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 709296001002006 |
|---|---|
| Connector Type | Contact, Poke-In Wire |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Mating Cycles | 5 cycles |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 300 VAC/DC |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
