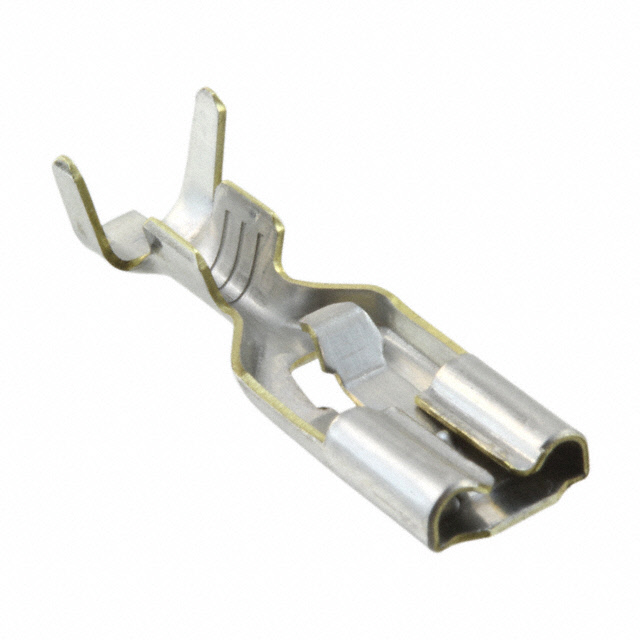

Specification	63232-1

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter (Max)	0.13 in
Insulation Diameter (Min)	0.09 in
Length - Overall	0.755 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.02 in
Tab Width	0.187 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge (AWG) (Max)	20.5 AWG
Wire Gauge (AWG) (Min)	16 AWG

Mark II Series

...
