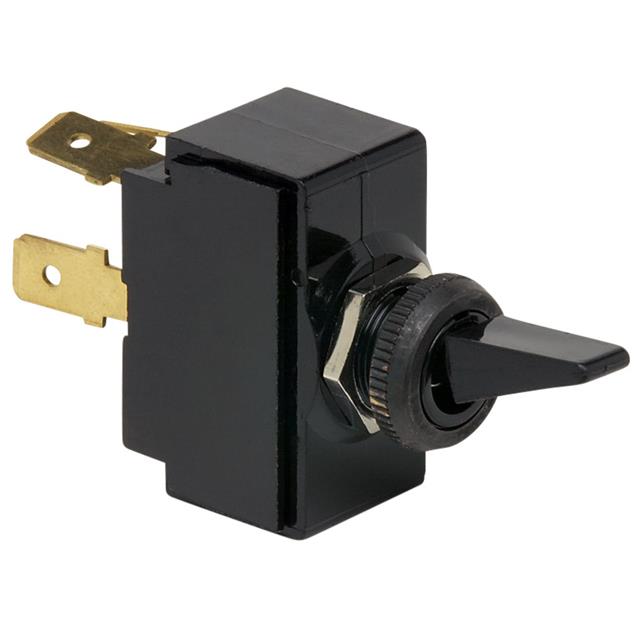

54100-01

Active

Cole Hersee

SWITCH TOGGLE SPST 25A 12V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH TOGGLE SPST 25A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	54100-01

Actuator Length [x]	17.46 mm
Actuator Material	Plastic
Actuator Type	Flatted
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	25 A
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	11.9 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

SWITCH TOGGLE SPST 25A 12V

Part	Panel Cutout Dimensions [diameter]	Circuit	Actuator Type	Actuator Length [x]	Illumination	Bushing Thread	Current Rating (Amps)	Actuator Material	Switch Function	Termination Style	Voltage Rating - DC
Cole Hersee 54100-01	11.9 mm	SPST	Flatted	17.46 mm	Non-Illuminated	15/32-32	25 A	Plastic	On-Off	Quick Connect - 0.250" (6.3mm)	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 7.13

General part information

Toggle Switch SPST Panel Mount
