2-103167-2
ActiveTE Connectivity AMP Connectors

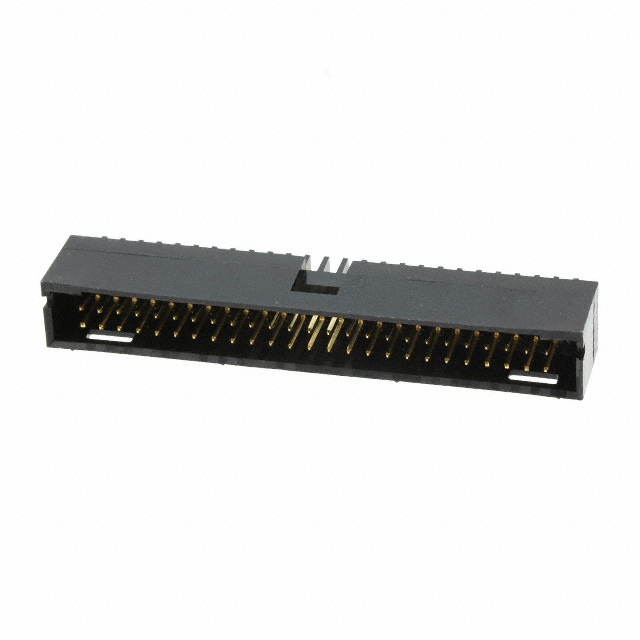

CONN HEADER R/A 50POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-103167-2
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 50POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-103167-2 | 103167 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating [x] | 0.318 " | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm | 8.08 mm |
| Contact Length - Post [x] | 0.135 in | 0.135 in |
| Contact Length - Post [x] | 3.43 mm | 3.43 mm |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Detent Lock | Detent Lock |
| Insulation Color | Black | Black |
| Insulation Height | 0.4 in | 0.4 in |
| Insulation Height | 10.16 mm | 10.16 mm |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 50 | 10 - 50 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 49.38 | |
| 10 | $ 40.93 | |||
| 80 | $ 34.59 | |||
103167 Series
CONN HEADER R/A 10POS 2.54MM
| Part | Style | Mounting Type | Fastening Type | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Number of Positions | Shrouding | Termination | Pitch - Mating | Pitch - Mating | Contact Type | Contact Finish - Post | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Length - Mating [x] | Contact Length - Mating [x] | Connector Type | Number of Rows | Insulation Color | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103167-2 | Board to Board, Cable | Through Hole, Right Angle | Detent Lock | All | 0.4 in | 10.16 mm | Square | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Thermoplastic | 10 | Shrouded - 4 Wall | Solder | 0.1 in | 2.54 mm | Male Pin | Tin | Gold | -65 ░C | 105 ░C | Phosphor Bronze | 0.318 " | 8.08 mm | Header | 2 | Black | 3 A | 0.135 in | 3.43 mm | 2.54 µm | 100 µin | UL94 V-0 | |
TE Connectivity AMP Connectors 103167-5 | Board to Board, Cable | Through Hole, Right Angle | Detent Lock | All | 0.4 in | 10.16 mm | Square | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Thermoplastic | Shrouded - 4 Wall | Solder | 0.1 in | 2.54 mm | Male Pin | Tin-Lead | Gold | -65 ░C | 105 ░C | Phosphor Bronze | 0.318 " | 8.08 mm | Header | 2 | Black | 3 A | 0.135 in | 3.43 mm | 2.54 µm | 100 µin | UL94 V-0 | 16 | |
TE Connectivity AMP Connectors 1-103167-4 | Board to Board, Cable | Through Hole, Right Angle | Detent Lock | All | 0.4 in | 10.16 mm | Square | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Thermoplastic | 34 | Shrouded - 4 Wall | Solder | 0.1 in | 2.54 mm | Male Pin | Tin-Lead | Gold | -65 ░C | 105 ░C | Phosphor Bronze | 0.318 " | 8.08 mm | Header | 2 | Black | 3 A | 0.135 in | 3.43 mm | 2.54 µm | 100 µin | UL94 V-0 | |
TE Connectivity AMP Connectors 2-103167-2 | Board to Board, Cable | Through Hole, Right Angle | Detent Lock | All | 0.4 in | 10.16 mm | Square | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Thermoplastic | 50 | Shrouded - 4 Wall | Solder | 0.1 in | 2.54 mm | Male Pin | Tin-Lead | Gold | -65 ░C | 105 ░C | Phosphor Bronze | 0.318 " | 8.08 mm | Header | 2 | Black | 3 A | 0.135 in | 3.43 mm | 2.54 µm | 100 µin | UL94 V-0 | |
TE Connectivity AMP Connectors 5-103167-3 | Board to Board, Cable | Through Hole, Right Angle | Detent Lock | All | 0.4 in | 10.16 mm | Square | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Thermoplastic | 12 | Shrouded - 4 Wall | Solder | 0.1 in | 2.54 mm | Male Pin | Tin | Gold | -65 ░C | 105 ░C | Phosphor Bronze | 0.318 " | 8.08 mm | Header | 2 | Black | 3 A | 0.135 in | 3.43 mm | 2.54 µm | 100 µin | UL94 V-0 | |
TE Connectivity AMP Connectors 103167-4 | Board to Board, Cable | Through Hole, Right Angle | Detent Lock | All | 0.4 in | 10.16 mm | Square | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Thermoplastic | 14 | Shrouded - 4 Wall | Solder | 0.1 in | 2.54 mm | Male Pin | Tin-Lead | Gold | -65 ░C | 105 ░C | Phosphor Bronze | 0.318 " | 8.08 mm | Header | 2 | Black | 3 A | 0.135 in | 3.43 mm | 2.54 µm | 100 µin | UL94 V-0 | |
TE Connectivity AMP Connectors 6-103167-2 | Board to Board, Cable | Through Hole, Right Angle | Detent Lock | All | 0.4 in | 10.16 mm | Square | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Thermoplastic | 30 | Shrouded - 4 Wall | Solder | 0.1 in | 2.54 mm | Male Pin | Tin | Gold | -65 ░C | 105 ░C | Phosphor Bronze | 0.318 " | 8.08 mm | Header | 2 | Black | 3 A | 0.135 in | 3.43 mm | 2.54 µm | 100 µin | UL94 V-0 | |
TE Connectivity AMP Connectors 5-103167-5 | Board to Board, Cable | Through Hole, Right Angle | Detent Lock | All | 0.4 in | 10.16 mm | Square | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Thermoplastic | Shrouded - 4 Wall | Solder | 0.1 in | 2.54 mm | Male Pin | Tin | Gold | -65 ░C | 105 ░C | Phosphor Bronze | 0.318 " | 8.08 mm | Header | 2 | Black | 3 A | 0.135 in | 3.43 mm | 2.54 µm | 100 µin | UL94 V-0 | 16 | |
TE Connectivity AMP Connectors 1-103167-2 | Board to Board, Cable | Through Hole, Right Angle | Detent Lock | All | 0.4 in | 10.16 mm | Square | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Thermoplastic | 30 | Shrouded - 4 Wall | Solder | 0.1 in | 2.54 mm | Male Pin | Tin-Lead | Gold | -65 ░C | 105 ░C | Phosphor Bronze | 0.318 " | 8.08 mm | Header | 2 | Black | 3 A | 0.135 in | 3.43 mm | 2.54 µm | 100 µin | UL94 V-0 | |
TE Connectivity AMP Connectors 6-103167-0 | Board to Board, Cable | Through Hole, Right Angle | Detent Lock | All | 0.4 in | 10.16 mm | Square | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Thermoplastic | 26 | Shrouded - 4 Wall | Solder | 0.1 in | 2.54 mm | Male Pin | Tin | Gold | -65 ░C | 105 ░C | Phosphor Bronze | 0.318 " | 8.08 mm | Header | 2 | Black | 3 A | 0.135 in | 3.43 mm | 2.54 µm | 100 µin | UL94 V-0 | |
TE Connectivity AMP Connectors 5-103167-4 | Board to Board, Cable | Through Hole, Right Angle | Detent Lock | All | 0.4 in | 10.16 mm | Square | 30 Áin | 0.76 Ám | 2.54 mm | 0.1 in | Thermoplastic | 14 | Shrouded - 4 Wall | Solder | 0.1 in | 2.54 mm | Male Pin | Tin | Gold | -65 ░C | 105 ░C | Phosphor Bronze | 0.318 " | 8.08 mm | Header | 2 | Black | 3 A | 0.135 in | 3.43 mm | 2.54 µm | 100 µin | UL94 V-0 |
Description
General part information
103167 Series
Connector Header Through Hole, Right Angle 50 position 0.100" (2.54mm)
