150223K250BB
ActiveCornell Dubilier Knowles

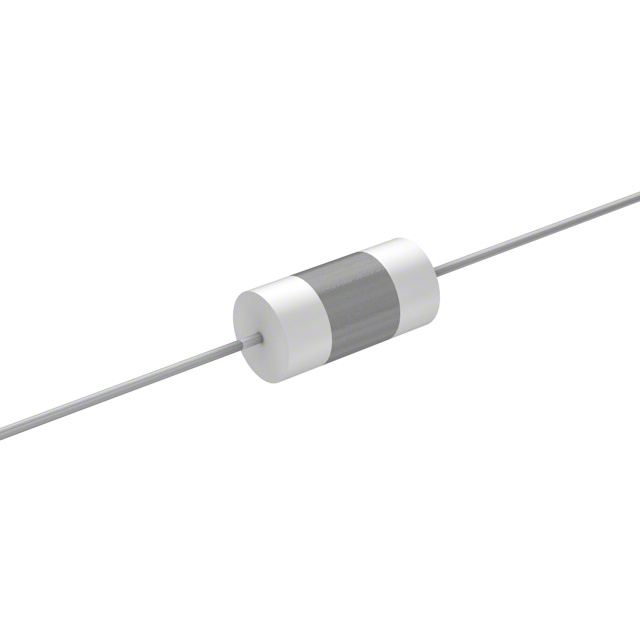

CAP FILM 0.022UF 250VDC AXIAL
150223K250BB
ActiveCornell Dubilier Knowles
CAP FILM 0.022UF 250VDC AXIAL
Description
General part information
150223K250BB
0.022 µF Film Capacitor 160V 250V Polyester, Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 150223K250BB |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.022 µF |
| Dielectric Material | Polyester, Metallized |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.236 in |
| Size / Dimension Length | 0.65 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 160 V |
| Voltage Rating - DC | 250 VDC |
