CONN SMB JACK R/A 50 OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMB JACK R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337481-0

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

CONN SMB JACK R/A 50 OHM PCB

Part	Connector Type	Fastening Type	Shield Termination	Mounting Type	Body Material	Voltage Rating	Dielectric Material	Mating Cycles	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Body Finish	Contact Termination	Insertion Loss	Center Contact Plating	Number of Ports	Impedance	Center Contact Material	Frequency - Max [Max]
TE Connectivity AMP Connectors 1-1337481-0	Jack, Male Pin	Snap-On	Solder	Through Hole, Right Angle	Brass	250 VDC	Polytetrafluoroethylene (PTFE)	500	SMB	-65 ░C	165 °C	Gold	Gold	Solder	0.6 dB	Gold	1	50 Ohms	Brass	4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

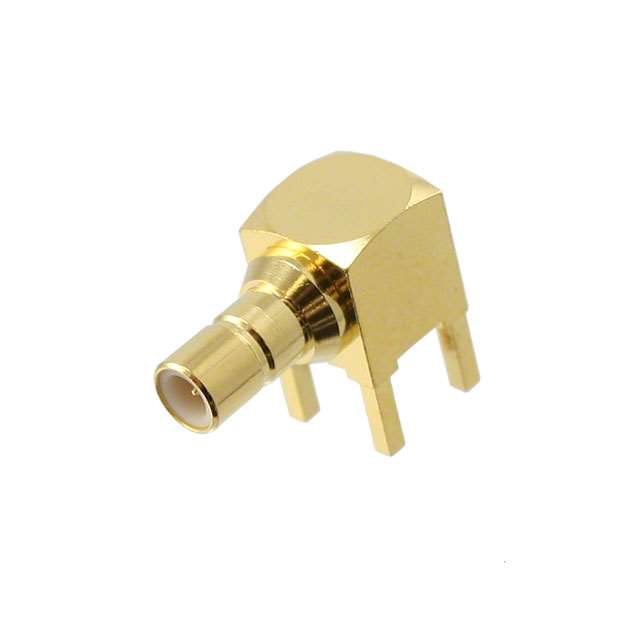

SMB Connector Jack, Male Pin 50 Ohms Through Hole, Right Angle Solder
