Description
General part information

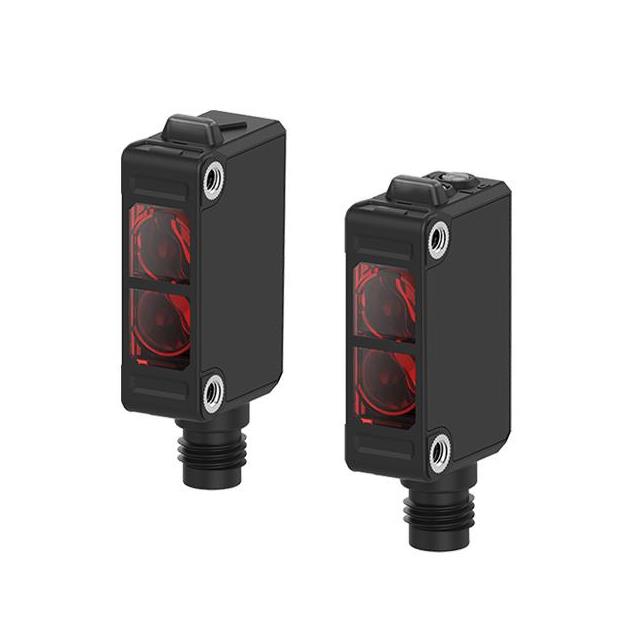

BJX30M-TDT-C
Through-Beam Optical Sensor 98.43' (30m) NPN - Open Collector, Light-ON\Dark-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | BJX30M-TDT-C |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Connector |
| Ingress Protection | IP67, IP65 |
| Light Source | Red |
| Light Source Wavelength (Red) | 660 nm |
| Operating Temperature (Max) | 55 °C, 60 °C |
| Operating Temperature (Min) | -25 °C, -25 °C |
| Output Configuration | Light-ON\Dark-ON, NPN - Open Collector |
| Response Time | 1 ms |
| Sensing Distance | 98.43 ' |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
