HSS01-B20-CP
ActiveSame Sky (Formerly CUI Devices)

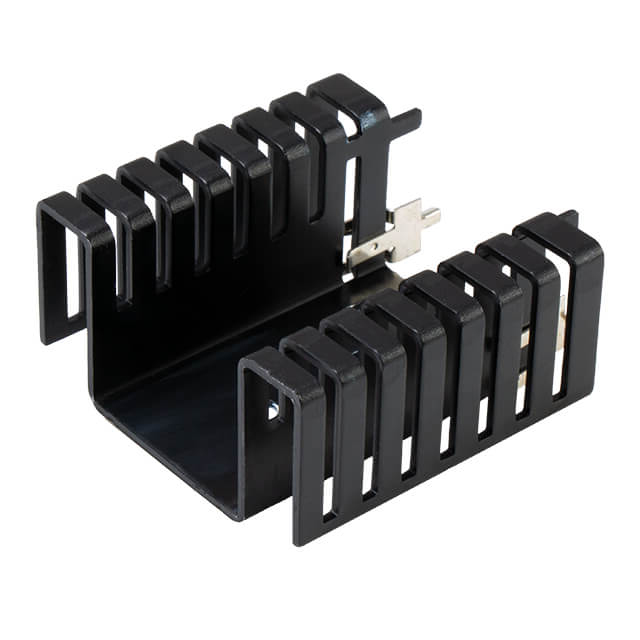

HEATSINK: EXTRUDED; U; TO220; BLACK; L: 49.31MM; W: 48.26MM; ANODIZED
HSS01-B20-CP
ActiveSame Sky (Formerly CUI Devices)
HEATSINK: EXTRUDED; U; TO220; BLACK; L: 49.31MM; W: 48.26MM; ANODIZED
Description
General part information
HSS01-B20-CP
Heat Sink TO-220 Aluminum Alloy 9.9W @ 75°C Board Level, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | HSS01-B20-CP |
|---|---|
| Attachment Method | PC Pin, Bolt On |
| Fin Height | 0.95 in |
| Length | 1.941 in |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Power Dissipation | 9.9 W |
| Shape | Rectangular |
| Thermal Resistance | 7.59 °C/W, 3.7 °C/W |
| Type | Vertical, Board Level |
| Width | 1.9 in |
