GLLPDLTEWI-B

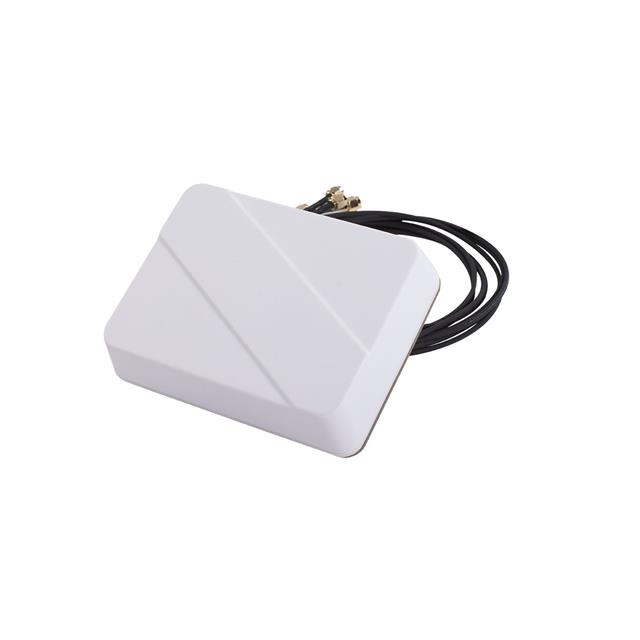

RF ANTENNA 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE, Wi-Fi Module SMA Male (2), RP-SMA Male (1) Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | GLLPDLTEWI-B |
|---|---|
| Antenna Type | Module |
| Applications | 2G, 5G, Bluetooth, Cellular, Wi-Fi, 3G, GPS, LTE, GNSS |
| Features | 914.4mm, Cable, LNA, Filter |
| Frequency (Center/Band) | 892MHz, 5.55GHz, 657.5MHz, 767.5MHz, 1.955GHz, 5.4GHz, 2.4GHz, 2.0025GHz, 1.5865GHz, 2.545GHz, 750MHz, 3.6GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 698 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 10) Maximum | 3.8 GHz |
| Frequency Range (Band 10) Minimum | 3.4 GHz |
| Frequency Range (Band 11) Maximum | 5.9 GHz |
| Frequency Range (Band 11) Minimum | 4.9 GHz |
| Frequency Range (Band 12) Maximum | 5.95 GHz |
| Frequency Range (Band 12) Minimum | 5.15 GHz |
| Frequency Range (Band 2) Maximum | 802 MHz |
| Frequency Range (Band 2) Minimum | 698 MHz |
| Frequency Range (Band 3) Maximum | 802 MHz |
| Frequency Range (Band 3) Minimum | 733 MHz |
| Frequency Range (Band 4) Maximum | 960 MHz |
| Frequency Range (Band 4) Minimum | 824 MHz |
| Frequency Range (Band 5) Maximum | 1.608 GHz |
| Frequency Range (Band 5) Minimum | 1.565 GHz |
| Frequency Range (Band 6) Maximum | 2.2 GHz |
| Frequency Range (Band 6) Minimum | 1.71 GHz |
| Frequency Range (Band 7) Maximum | 2.2 GHz |
| Frequency Range (Band 7) Minimum | 1.805 GHz |
| Frequency Range (Band 8) Maximum | 2.5 GHz |
| Frequency Range (Band 8) Minimum | 2.3 GHz |
| Frequency Range (Band 9) Maximum | 2.69 GHz |
| Frequency Range (Band 9) Minimum | 2.4 GHz |
| Gain | 0.6 dBi, 4.9 dBi, 5.1 dBi, 3 dBi, 5.6 dBi, 2.4 dBi, 6.7 dBi, 0.5 dBi, 6.1 dBi, 5.2 dBi, -2 dBic, 4.5 dBi, 6 dBi |
| Height (Max) | 1.339 in |
| Ingress Protection | IP67 |
| Mounting Type | Stud |
| Number of Bands | 12 |
| Power - Max | 50 VA |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Termination | SMA Male (2), RP-SMA Male (1) |
| Termination Count | 1 |
| Termination Count (SMA Male) | 2 |
| Termination Type | RP-SMA Male, SMA Male |
| VSWR | 2 |
