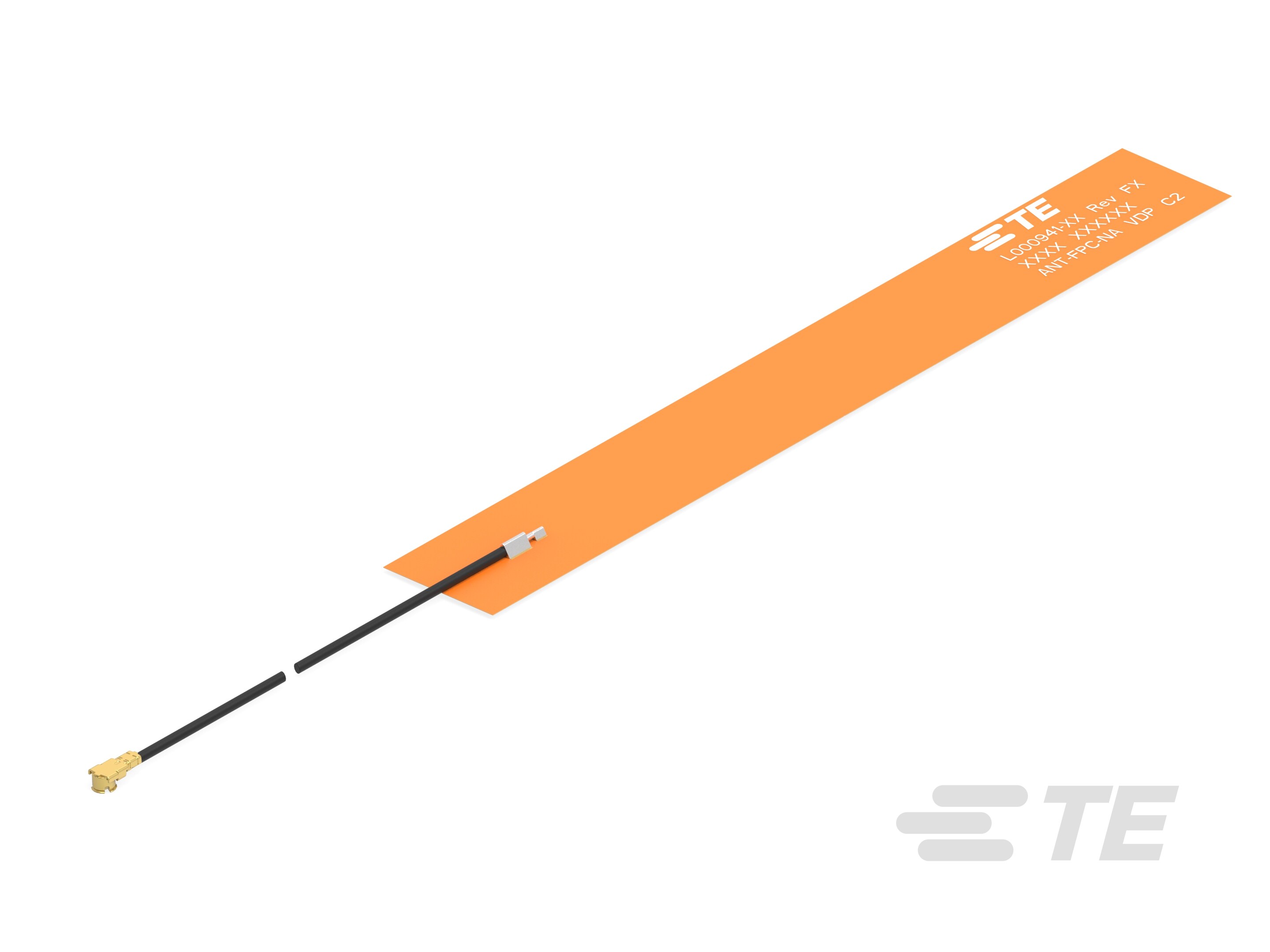

Specification	L000941-03

Antenna Type	Flat Patch
Applications	5G, LTE
Features	Cable, 150mm
Frequency (Center/Band)	2.332GHz, 1.955GHz, 755.5MHz, 4.7GHz, 4GHz, 2.593GHz, 3.55GHz
Frequency (Center/Band) - 1	755.5 MHz
Frequency (Center/Band) - 2	1.955 GHz
Frequency (Center/Band) - 3	2.332 GHz
Frequency (Center/Band) - 4	2.593 GHz
Frequency (Center/Band) - 5	3.55 GHz
Frequency (Center/Band) - 6	4 GHz
Frequency (Center/Band) - 7	4.7 GHz
Frequency Group	Wide Band
Frequency Range (Band 1) Maximum	894 MHz
Frequency Range (Band 1) Minimum	617 MHz
Frequency Range (Band 2) Maximum	2.2 GHz
Frequency Range (Band 2) Minimum	1.71 GHz
Frequency Range (Band 3) Maximum	2.36 GHz
Frequency Range (Band 3) Minimum	2.305 GHz
Frequency Range (Band 4) Maximum	2.69 GHz
Frequency Range (Band 4) Minimum	2.496 GHz
Frequency Range (Band 5) Maximum	3.8 GHz
Frequency Range (Band 5) Minimum	3.3 GHz
Frequency Range (Band 6) Maximum	4.2 GHz
Frequency Range (Band 6) Minimum	3.8 GHz
Frequency Range (Band 7) Maximum	5 GHz
Frequency Range (Band 7) Minimum	4.4 GHz
Gain	4.33 dBi, 3.72 dBi, 1.56 dBi, 1.29 dBi, 2.8 dBi, 2.45 dBi, 3.76 dBi
Height (Max)	0.006 in
Mounting Type	Adhesive
Number of Bands	7
Power - Max	10 VA
RF Family/Standard	Cellular
Termination	MHF
VSWR	1.6, 2, 2.1, 2.3, 2.5
