SP28W2F
ActiveMcGill Microwave Systems

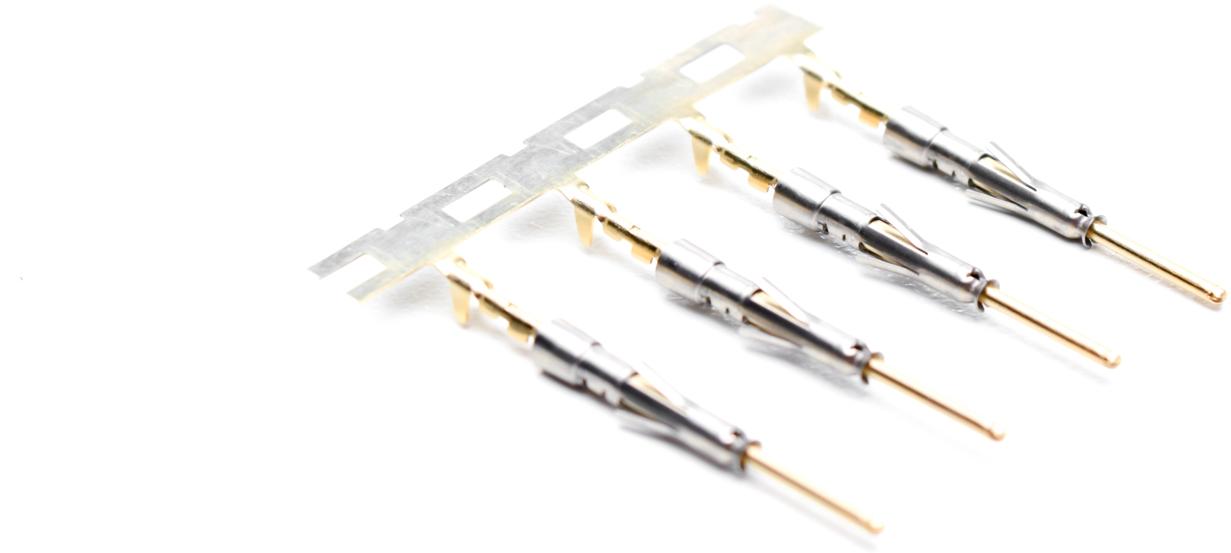

CIRCULAR CONNECTOR CONTACT, SIZE 20, ECOMATE SERIES, PIN, CRIMP, 28 AWG, 30 AWG
SP28W2F
ActiveMcGill Microwave Systems
CIRCULAR CONNECTOR CONTACT, SIZE 20, ECOMATE SERIES, PIN, CRIMP, 28 AWG, 30 AWG
Description
General part information
SP28W2F
CIRCULAR CONNECTOR CONTACT, SIZE 20, ECOMATE SERIES, PIN, CRIMP, 28 AWG, 30 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | SP28W2F |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Contact Material | Copper Alloy |
| Contact Size | 20 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Features | Insulation Support |
| Type | Stamped, Signal |
| Wire Gauge or Range - AWG (Max) | 30 AWG |
| Wire Gauge or Range - AWG (Min) | 28 AWG |
| Wire Gauge or Range - mm² (Maximum) | 0.08 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.05 mm² |
