MGV201610S2R2M-10
ActiveLaird Technologies EMI
FIXED IND 2.2UH 2.2A 140MOHM SMD
MGV201610S2R2M-10
ActiveLaird Technologies EMI
FIXED IND 2.2UH 2.2A 140MOHM SMD
Description
General part information
MGV201610S2R2M-10

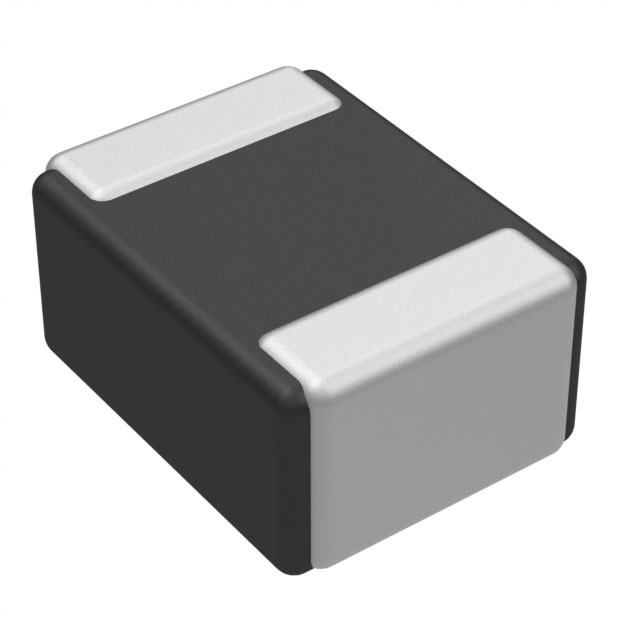

2.2 µH Shielded Molded Inductor 2.2 A 140mOhm Max 0806 (2016 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MGV201610S2R2M-10 |
|---|---|
| Current - Saturation (Isat) | 2.6 A |
| Current Rating | 2.2 A |
| DC Resistance (DCR) (Max) | 140 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0806 (2016 Metric) |
| Shielding | Shielded |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
| Tolerance | 20 % |
| Type | Molded |
