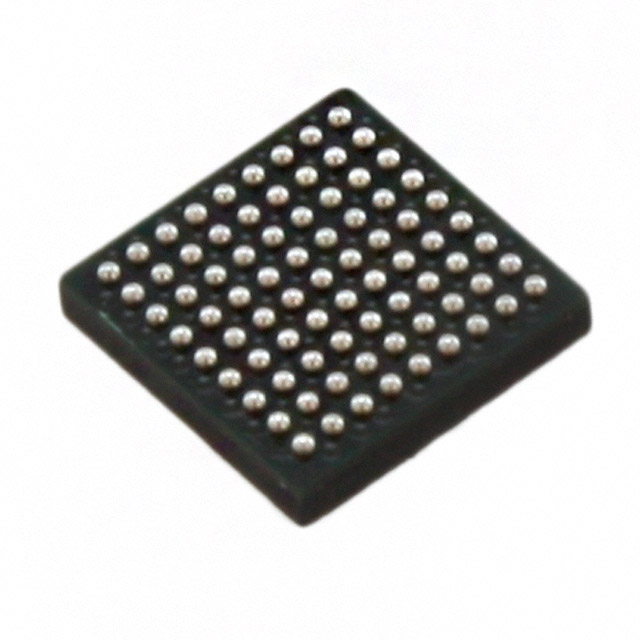

Specification	ICE40LP1K-CM81TR

Mounting Type	Surface Mount
Number of I/O	63
Number of LABs/CLBs	160
Number of Logic Elements/Cells	1280
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Package / Case	81-VFBGA
Package Length	4 mm
Package Name	81-UCBGA
Package Width	4 mm
Total RAM Bits	65536 bits
Voltage - Supply (Maximum)	1.26 V
Voltage - Supply (Minimum)	1.14 V

ICE40 Series

Part	Package Length	Package Name	Package Width	Operating Temperature (Max)	Operating Temperature (Min)	Number of Logic Elements/Cells	Total RAM Bits	Number of LABs/CLBs	Mounting Type	Package / Case	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Number of I/O	For Use With/Related Products	Utilized IC / Part	Contents	Platform	Type	Suggested Programming Environment
Lattice Semiconductor Corporation ICE40HX8K-CB132	8 mm	132-CSBGA	8 mm	100 °C	-40 °C	7680	131072 bits	960	Surface Mount	132-LFBGA CSPBGA	1.14 V	1.26 V	95
Lattice Semiconductor Corporation ICE40LP1K-CM121TR	5 mm	121-UCBGA	5 mm	100 °C	-40 °C	1280	65536 bits	160	Surface Mount	121-VFBGA CSBGA	1.14 V	1.26 V	95
Lattice Semiconductor Corporation ICE40LP1K-SWG16TR1K	1.4 mm	16-WLCSP	1.48 mm	100 °C	-40 °C	1280	65536 bits	160	Surface Mount	16-XFBGA WLCSP	1.14 V	1.26 V	10
Lattice Semiconductor Corporation ICE40LM4K-S-EVN														iCE40LM4K	iCE40LM4K	Board Cable	iCE40 LM FPGA Sensor	FPGA
Lattice Semiconductor Corporation ICE40LP4K-CM225	7 mm	225-UCBGA	7 mm	100 °C	-40 °C	3520	81920 bits	440	Surface Mount	225-VFBGA	1.14 V	1.26 V	167
Lattice Semiconductor Corporation ICE40HX8K-B-EVN														iCE40HX8K	iCE40HX8K	Board Cable	iCE40 HX FPGA Breakout	FPGA	iCEcube2
Lattice Semiconductor Corporation ICE40HX4K-BG121TR	9 mm	121-caBGA	9 mm	100 °C	-40 °C	3520	81920 bits	440	Surface Mount	121-TFBGA	1.14 V	1.26 V	93
Lattice Semiconductor Corporation ICE40LP384-CM36	2.5 mm	36-UCBGA	2.5 mm	100 °C	-40 °C	384		48	Surface Mount	36-VFBGA	1.14 V	1.26 V	25
Lattice Semiconductor Corporation ICE40HX1K-TQ144	20 mm	144-TQFP	20 mm	100 °C	-40 °C	1280	65536 bits	160	Surface Mount	144-LQFP	1.14 V	1.26 V	96
Lattice Semiconductor Corporation ICE40LP1K-CB121	6 mm	121-CSBGA	6 mm	100 °C	-40 °C	1280	65536 bits	160	Surface Mount	121-VFBGA CSBGA	1.14 V	1.26 V	92
