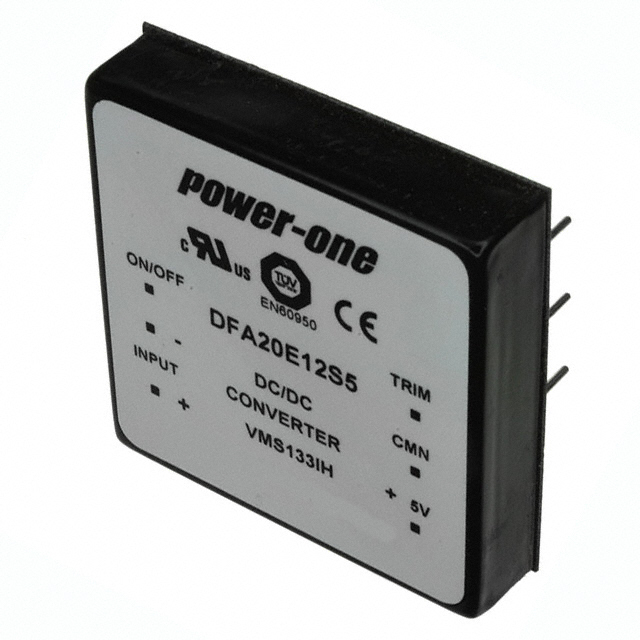

DFA20E12S5
ObsoleteBel Fuse Inc.
DC DC CONVERTER 5V 20W
DFA20E12S5
ObsoleteBel Fuse Inc.
DC DC CONVERTER 5V 20W
Description
General part information
DFA20E12S5
Isolated Module DC DC Converter 1 Output 5V 4A 9V - 18V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | DFA20E12S5 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 4 A |
| Efficiency | 79 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -50 °C |
| Package / Case | 7-DIP Module |
| Power (Watts) | 20 W |
| Size / Dimension Height | 0.45 in |
| Size / Dimension Length | 2.02 in |
| Size / Dimension Width | 2.02 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 18 V |
| Voltage - Input (Min) | 9 V |
| Voltage - Isolation | 700 V |
| Voltage - Output 1 | 5 V |
