T1920163225-000
ActiveTE Connectivity AMP Connectors
H16BPR-TGH-M32/M25
T1920163225-000
ActiveTE Connectivity AMP Connectors
H16BPR-TGH-M32/M25
Description
General part information
T1920163225-000

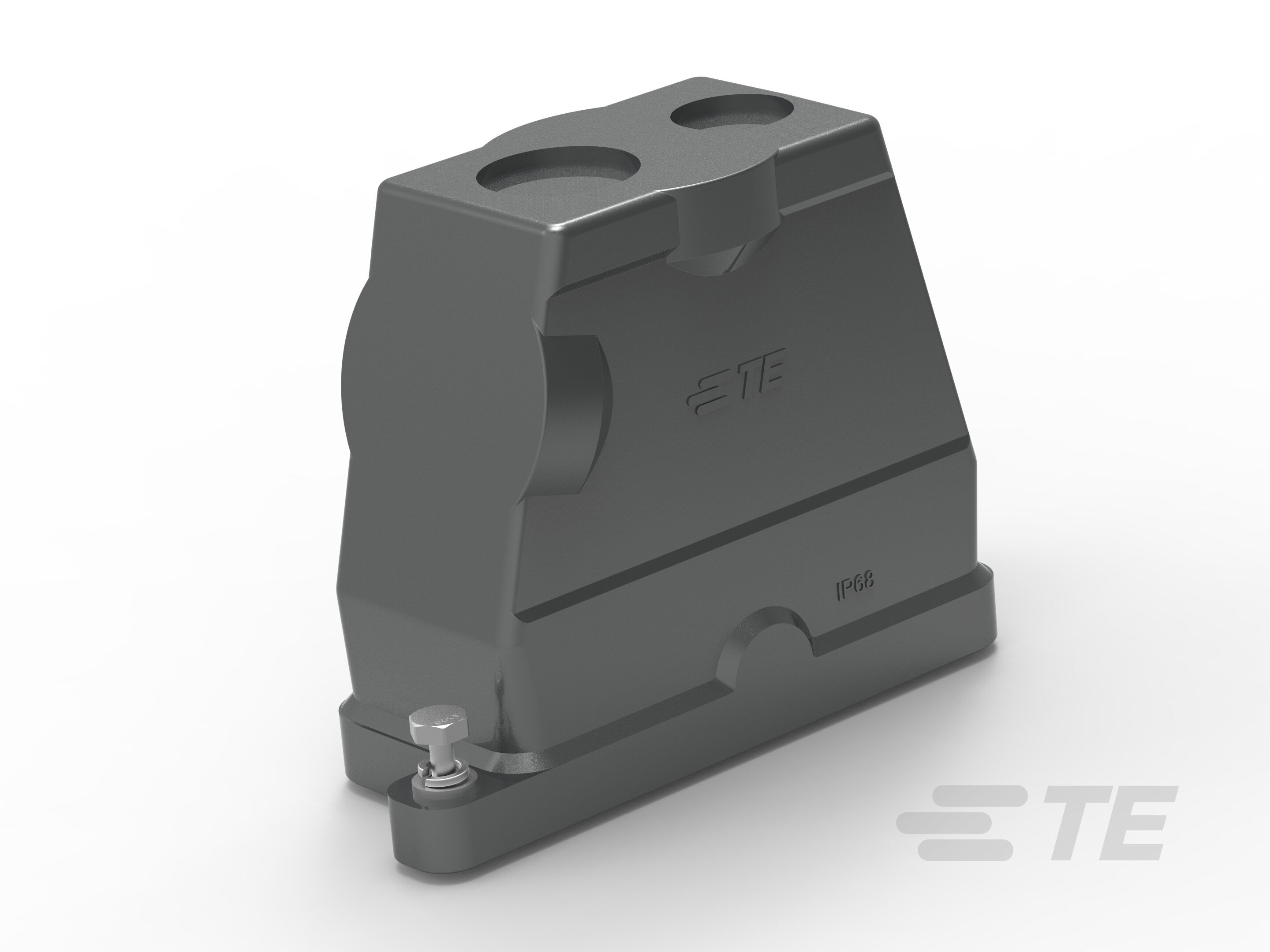

Heavy Duty Connector Hood, Bottom Entry, Screwlock, Sealable
Technical Specifications
Parameters and characteristics for this part
| Specification | T1920163225-000 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Lock Location | Screw Locks on Hood |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | H16B |
| Size / Dimension Height | 4.4 in |
| Size / Dimension Length | 6.535 in |
| Size / Dimension Width | 2.283 in |
| Style | Top Entry, Dual |
| Thread Size | M32, M25 |
