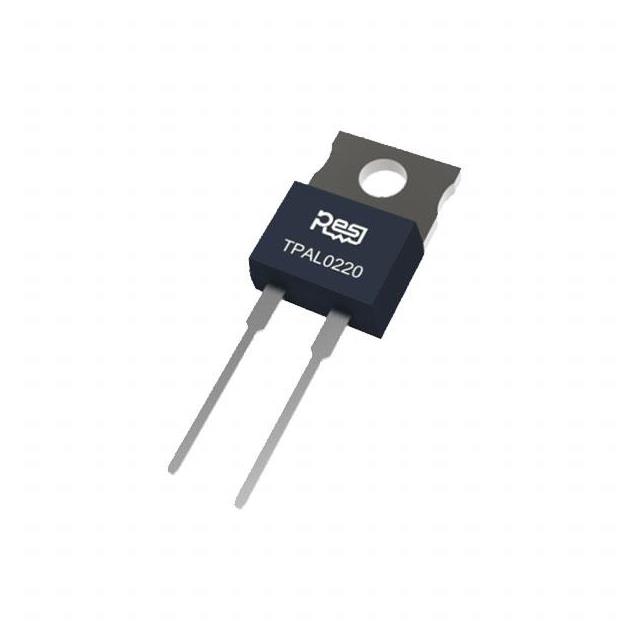

TPAL0220F7R50K9
ActiveC&B Eureka Innovations
RES 7.5 OHMS 35W 1% TO220
TPAL0220F7R50K9
ActiveC&B Eureka Innovations
RES 7.5 OHMS 35W 1% TO220
Description
General part information
TPAL0220F7R50K9
7.5 Ohms ±1% 35W Through Hole Resistor TO-220-2 Non-Inductive Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | TPAL0220F7R50K9 |
|---|---|
| Composition | Thick Film |
| Features | Non-Inductive |
| Height - Seated (Max) | 0.772 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-220-2 |
| Package Name | TO-220 |
| Power (Watts) | 35 W |
| Resistance | 7.5 Ohm |
| Size / Dimension Length | 0.398 in |
| Size / Dimension Width | 0.177 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
