Description
General part information

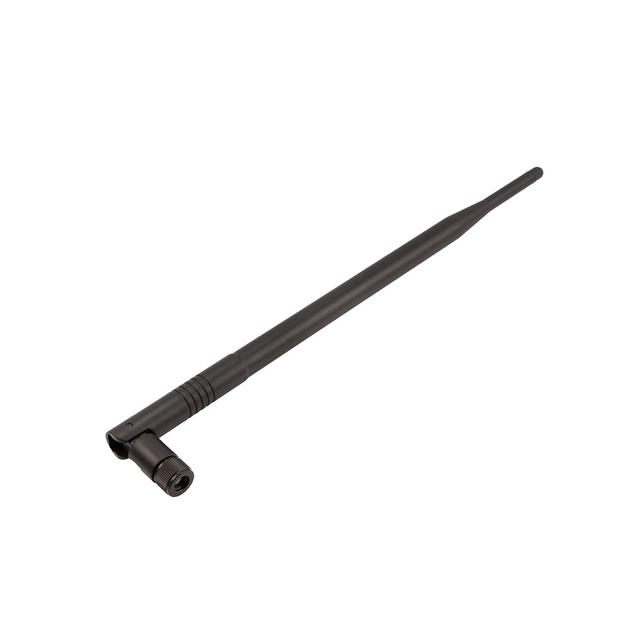

HG2407RD-1-RSP
2.45GHz 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN Whip, Right Angle RF Antenna 2.4GHz ~ 2.5GHz 7dBi RP-SMA Male Connector Mount, Magnetic
Technical Specifications
Parameters and characteristics for this part
| Specification | HG2407RD-1-RSP |
|---|---|
| Antenna Type | Right Angle, Whip |
| Applications | WLAN, Bluetooth, ISM, Wi-Fi, 802.11b/g/n |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 2.45 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 7 dBi |
| Height (Max) | 11.575 in |
| Mounting Type | Connector Mount, Magnetic |
| Number of Bands | 1 |
| Power - Max | 10 VA |
| RF Family/Standard | Bluetooth, WiFi, General ISM |
| Termination Type | RP-SMA Male |
| VSWR | 2 |
