EK24108-01

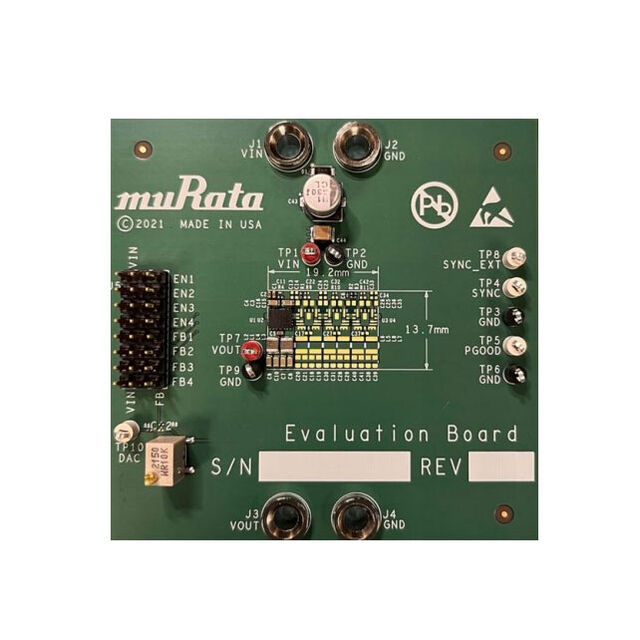

EK24108-01 is a PE24108 evaluation board (EVK). The PE24108 is a compact, low-profile, and ultra-high efficiency step-down DC-DC converter solution capable of delivering 10A per stage output current from an input voltage range from 3.0V to 3.6V. The output voltage is selected with external feedback resistors and can be adjusted between 0.4 and 1.0V. Based on Murata’s advanced two-stage architecture, the device consists of a two-phase interleaved charge pump followed by an interleaved buck regulator stage. This power system greatly reduces the dependency on inductance for high efficiency solutions in small footprint and height-constrained applications.
Technical Specifications
Parameters and characteristics for this part
| Specification | EK24108-01 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 10 A |
| Frequency - Switching | 800 kHz |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | PE24108 |
| Voltage - Input (Maximum) | 3.6 V |
| Voltage - Input (Minimum) | 3 V |
| Voltage - Output (Max) | 1 V |
| Voltage - Output (Min) | 0.4 V |
