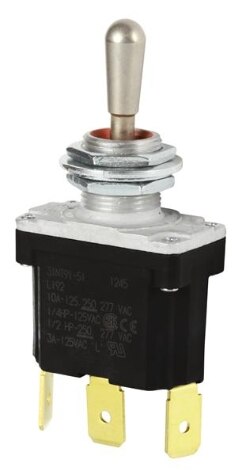

Specification	31NT91-51

Actuator Length	17.02 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating	10 A
Features	Sealed
Illumination	Non-Illuminated
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP68, IP67
Mounting Type	Panel Mount
Operating Temperature (Max)	71 °C
Operating Temperature (Min)	-40 °C
Panel Cutout Diameter	12.4 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Mom
Termination Style	Quick Connect
Voltage Rating - AC	125 V
