3336CS
ActiveCentury Spring Corp
COMP O= .984,L= .72,W= .095
3336CS
ActiveCentury Spring Corp
COMP O= .984,L= .72,W= .095
Description
General part information

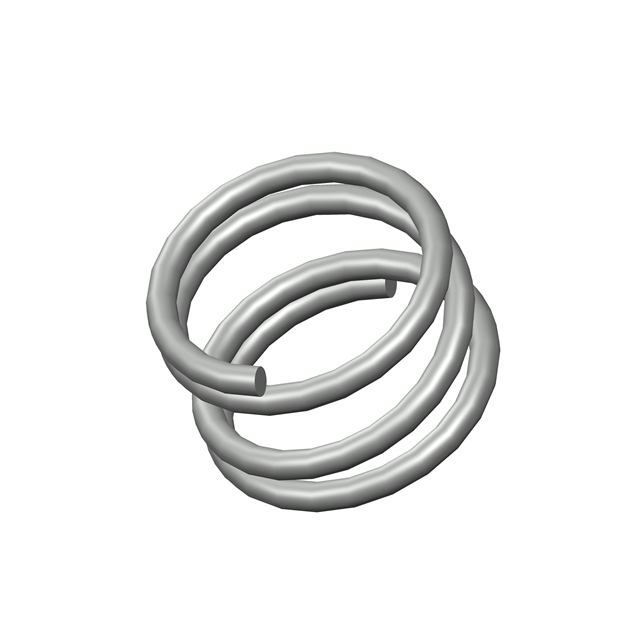

3336CS
COMP O= .984,L= .72,W= .095
Technical Specifications
Parameters and characteristics for this part
| Specification | 3336CS |
|---|---|
| Diameter - Inside | 0.794 in |
| Diameter - Outside | 0.984 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 0.72 in |
| Material | Spring Steel |
| Rate (lbs/in) | 111 lbs/in |
| Type | Compression |
| Wire Diameter | 0.095 in |
