FFSD-24-D-24.00-01-N

Active

Samtec Inc.

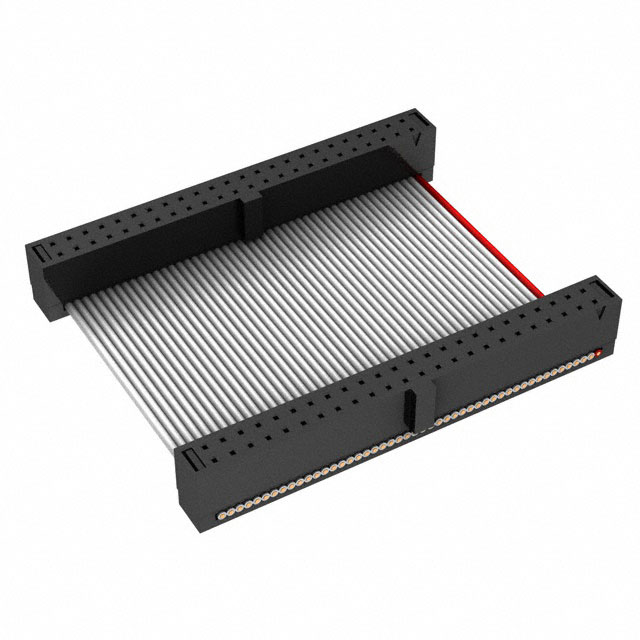

CABLE ASSEMBLY 0.609M 30AWG 1.27MM 48 TO 48 POS IDC CONNECTOR TO IDC CONNECTOR F-F TIGER EYE™ BULK

Search across all available documentation for this part.

Active

Samtec Inc.

CABLE ASSEMBLY 0.609M 30AWG 1.27MM 48 TO 48 POS IDC CONNECTOR TO IDC CONNECTOR F-F TIGER EYE™ BULK

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Length	Length	Length	Number of Positions	Number of Rows	Pitch - Cable [x]	Pitch - Cable	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Features	Cable Termination	Contact Finish	Length [x]	Length [x]	Pitch [x]	Pitch [x]	Wire Type	Mounting Type	Contact Type	Wire Gauge	Color	Row Spacing	Row Spacing	Length
Samtec Inc. FFSD-24-D-06.00-01-N	Unshielded	152.4 mm	6 "	0.5 '	48	2	0.025 in	0.64 mm	Socket to Socket	10 Áin	0.25 Ám	0.05 in	1.27 mm	Polarizing Key	IDC	Gold
Samtec Inc. FFSD-24-D-24.00-01-N	Unshielded				48	2	0.025 in	0.64 mm	Socket to Socket	10 Áin	0.25 Ám	0.05 in	1.27 mm	Polarizing Key	IDC	Gold	2 '	609.6 mm
Samtec Inc. FFSD-24-01-N					48	2			Receptacle	10 Áin	0.25 Ám			Feed Through Polarizing Key	IDC	Gold			0.05 in	1.27 mm	Ribbon Cable	Free Hanging (In-Line)	Female Socket	30 AWG	Black	1.27 mm	0.05 in
Samtec Inc. FFSD-24-S-10.00-01-N	Unshielded	254 mm	10 in		48	2	0.025 in	0.64 mm	Socket to Cable	10 Áin	0.25 Ám	0.05 in	1.27 mm	Polarizing Key	IDC	Gold												0.833 ft
Samtec Inc. FFSD-24-D-02.00-01-N	Unshielded	50.8 mm	2 "		48	2	0.025 in	0.64 mm	Socket to Socket	10 Áin	0.25 Ám	0.05 in	1.27 mm	Polarizing Key	IDC	Gold												0.167 '
Samtec Inc. FFSD-24-D-12.00-01-N	Unshielded	304.8 mm			48	2	0.025 in	0.64 mm	Socket to Socket	10 Áin	0.25 Ám	0.05 in	1.27 mm	Polarizing Key	IDC	Gold												1 ft
Samtec Inc. FFSD-24-D-20.00-01-N	Unshielded	508 mm			48	2	0.025 in	0.64 mm	Socket to Socket	10 Áin	0.25 Ám	0.05 in	1.27 mm	Polarizing Key	IDC	Gold												1.67 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.75

General part information

48 Position Cable Assembly Rectangular Socket to Socket 2.00' (609.60mm)

Technical documentation and resources
