Description
General part information

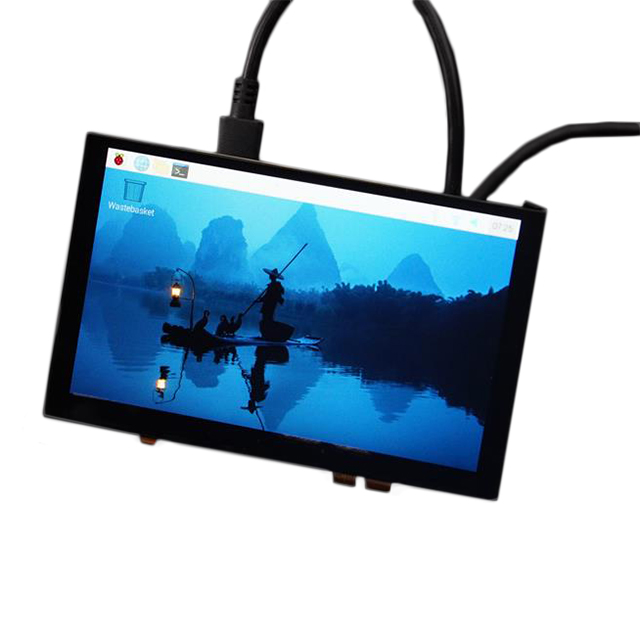

DFR0550-V2
Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) IPS (In-Plane Switching) 24-Bit (RGB), TTL 5" (127.00mm) 800 x 480 (WVGA)
Technical Specifications
Parameters and characteristics for this part
| Specification | DFR0550-V2 |
|---|---|
| Background Color | Black |
| Diagonal Screen Size | 5 in |
| Display Mode | Transmissive |
| Display Type | IPS (In-Plane Switching) |
| Dot Pitch Height | 0.14 mm |
| Dot Pitch Width | 0.05 mm |
| Dot Pixels (Horizontal) | 800 pixels |
| Dot Pixels (Resolution) | WVGA |
| Dot Pixels (Vertical) | 480 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | TTL |
| Interface Data Width | 24 Bit |
| Touchscreen | Capacitive |
| Viewing Area Height | 64.8 mm |
| Viewing Area Width | 108 mm |
