Description
General part information

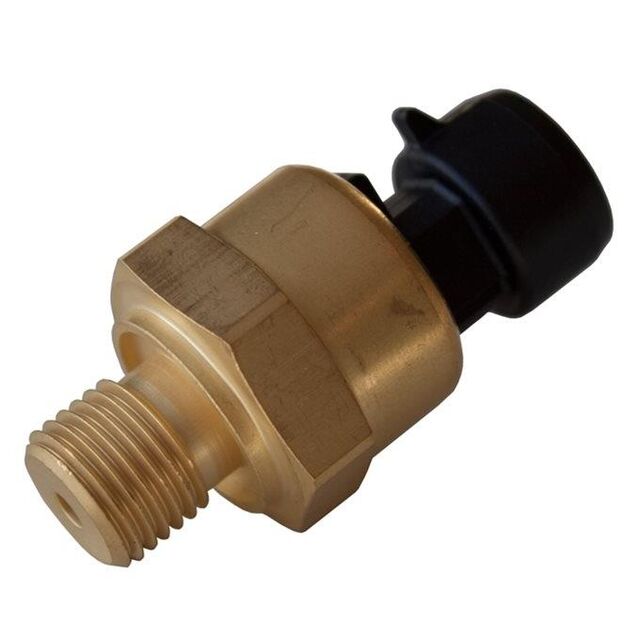

EPT2200-C-00700-B-5-C (94264071)
Pressure Sensor
Technical Specifications
Parameters and characteristics for this part
| Specification | EPT2200-C-00700-B-5-C (94264071) |
|---|---|
| Accuracy | 1 % |
| Features | Temperature Compensated |
| Maximum Pressure | 203.05 PSI |
| Operating Pressure | 101.53 PSI |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Analog Voltage |
| Output Voltage (Max) | 4.5 V |
| Output Voltage (Min) | 0.5 V |
| Package / Case | Threaded, Cylinder |
| Port Diameter | 0.4375 in |
| Port Feature | UNF |
| Port Gender | Female |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | Packard Metripak 150 |
| Voltage - Supply | 5 VDC |
