5280-6PG-318
ActiveConxall/Switchcraft

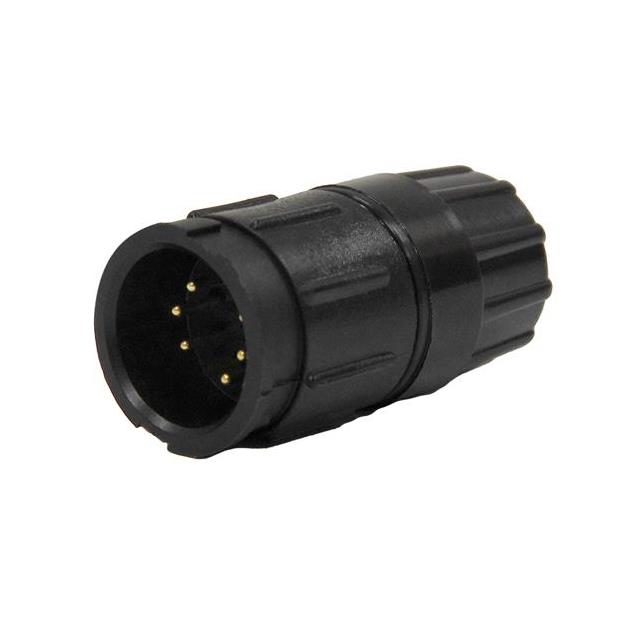

CONN RCPT MALE 6POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5280-6PG-318
ActiveConxall/Switchcraft
CONN RCPT MALE 6POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5280-6PG-318 | 5280-6PG Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening | - | 5.33 - 7.62 mm |
| Cable Opening | - | 0.23 - 0.32 in |
| Cable Opening | - | 8.13 mm |
| Cable Opening | - | 0.21 - 0.3 in |
| Cable Opening | - | 5.84 - 7.37 mm |
| Cable Opening [Max] [custom] | 0.2 in | 0.2 in |
| Cable Opening [Max] [custom] | 5.08 mm | 5.08 mm |
| Cable Opening [Min] [custom] | 4.57 mm | 4.57 mm |
| Cable Opening [Min] [custom] | 0.18 in | 0.18 in |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell, Cable Clamp |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
5280-6PG Series
CONN RCPT MALE 6POS GOLD CRIMP
| Part | Fastening Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Primary Material | Cable Opening [custom] | Cable Opening [custom] | Color | Voltage Rating | Contact Material | Connector Type | Termination | Mounting Type | Features | Backshell Material, Plating | Contact Finish - Mating | Ingress Protection | Orientation | Current Rating (Amps) | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 5280-6PG-315 | Bayonet Lock | 6 | -40 °C | 115 °C | Unshielded | Plastic | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | Black | 600 V | Brass | Male Pins, Receptacle | Crimp | Free Hanging (In-Line) | Backshell | Nylon, Polyamide (PA) | Gold | Weathertight | Keyed | 5.6 A | |||||||||
Conxall/Switchcraft 5280-6PG-330 | Bayonet Lock | 6 | -40 °C | 115 °C | Unshielded | Plastic | Black | 600 V | Brass | Male Pins, Receptacle | Crimp | Free Hanging (In-Line) | Backshell | Nylon, Polyamide (PA) | Gold | Weathertight | Keyed | 5.6 A | 7.62 mm | 0.32 in | 8.13 mm | 0.3 in | |||||||
Conxall/Switchcraft 5280-6PG-515 | Bayonet Lock | 6 | -40 °C | 115 °C | Unshielded | Plastic | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | Black | 600 V | Brass | Male Pins, Receptacle | Crimp | Free Hanging (In-Line) | Backshell, Cable Clamp | Nylon, Polyamide (PA) | Gold | Weathertight | Keyed | 5.6 A | |||||||||
Conxall/Switchcraft 5280-6PG-321 | Bayonet Lock | 6 | -40 °C | 115 °C | Unshielded | Plastic | Black | 600 V | Brass | Male Pins, Receptacle | Crimp | Free Hanging (In-Line) | Backshell | Nylon, Polyamide (PA) | Gold | Weathertight | Keyed | 5.6 A | 5.33 mm | 0.23 in | 0.21 in | 5.84 mm | |||||||
Conxall/Switchcraft 5280-6PG-318 | Bayonet Lock | 6 | -40 °C | 115 °C | Unshielded | Plastic | Black | 600 V | Brass | Male Pins, Receptacle | Crimp | Free Hanging (In-Line) | Backshell | Nylon, Polyamide (PA) | Gold | Weathertight | Keyed | 5.6 A | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||||
Conxall/Switchcraft 5280-6PG-528 | Bayonet Lock | 6 | -40 °C | 115 °C | Unshielded | Plastic | Black | 600 V | Brass | Male Pins, Receptacle | Crimp | Free Hanging (In-Line) | Backshell, Cable Clamp | Nylon, Polyamide (PA) | Gold | Weathertight | Keyed | 5.6 A | 7.11 mm | 0.29 in | 0.28 in | 7.37 mm | |||||||
Conxall/Switchcraft 5280-6PG-3DC | Bayonet Lock | 6 | -40 °C | 115 °C | Unshielded | Plastic | Black | 600 V | Brass | Male Pins, Receptacle | Crimp | Free Hanging (In-Line) | Backshell | Nylon, Polyamide (PA) | Gold | Weathertight | Keyed | 5.6 A | |||||||||||
Conxall/Switchcraft 5280-6PG-324 | Bayonet Lock | 6 | -40 °C | 115 °C | Unshielded | Plastic | Black | 600 V | Brass | Male Pins, Receptacle | Crimp | Free Hanging (In-Line) | Backshell | Nylon, Polyamide (PA) | Gold | Weathertight | Keyed | 5.6 A | 6.1 mm | 0.27 in | 0.24 in | 6.86 mm | |||||||
Conxall/Switchcraft 5280-6PG-524 | Bayonet Lock | 6 | -40 °C | 115 °C | Unshielded | Plastic | Black | 600 V | Brass | Male Pins, Receptacle | Crimp | Free Hanging (In-Line) | Backshell, Cable Clamp | Nylon, Polyamide (PA) | Gold | Weathertight | Keyed | 5.6 A | 6.1 mm | 0.27 in | 0.24 in | 6.86 mm |
