Description
General part information

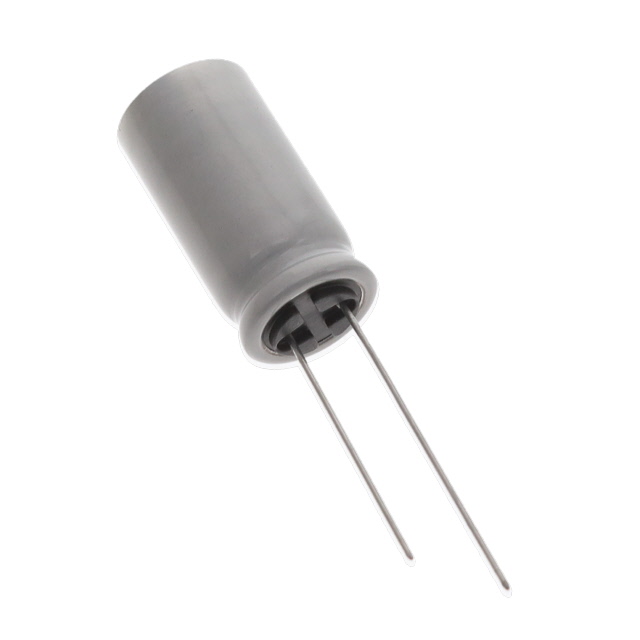

UBY1J561MHL
560 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 54mOhm @ 100kHz 3000 Hrs @ 135°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UBY1J561MHL |
|---|---|
| Applications | Automotive |
| Capacitance | 560 µF |
| ESR (Equivalent Series Resistance) | 54 mOhm |
| Height - Seated (Max) | 1.043 in |
| Lead Spacing | 0.197 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 135 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 1.26 A, 2.52 A |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
