DB-338
ActiveAmphenol Industrial Operations

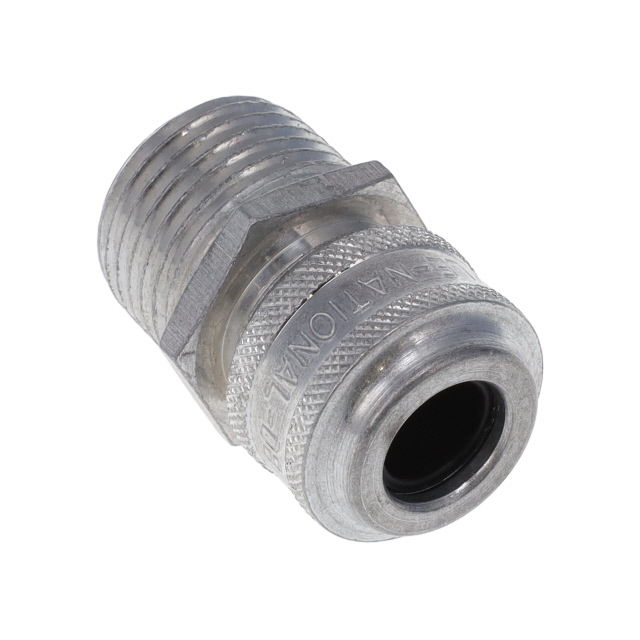

CABLE GRIP 7.93-9.53MM ALUMINUM
Deep-Dive with AI
Search across all available documentation for this part.
DB-338
ActiveAmphenol Industrial Operations
CABLE GRIP 7.93-9.53MM ALUMINUM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DB-338 | - Series |
|---|---|---|
| - | - | |
| Color | Silver | Silver |
| Conduit Hub Size | 0.5 " | 0.5 " |
| Conduit Hub Size | 12.7 mm | 12.7 mm |
| Includes | Compression Nut, Strain Relief | Compression Nut, Strain Relief |
| Material | Aluminum | Metal Alloy, Aluminum |
| Outside Cable Diameter (Max) [Max] [diameter] | 9.53 mm | 6.35 - 9.53 mm |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.375 " | 0.25 - 0.375 " |
| Outside Cable Diameter (Min) | - | 3.18 - 6.35 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.312 in | 0.125 - 0.312 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 7.93 mm | 7.93 mm |
| Panel Hole Size | 7/8 | 7/8 |
| Panel Hole Size | 0.875 in, 22.2 mm | 0.875 - 22.2 in |
| Type | Cable Grip | Cable Grip - 90°, Cable Grip |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.71 | |
| 10 | $ 16.21 | |||
| 100 | $ 13.36 | |||
- Series
CABLE GRIP RA 6.35-9.53MM METAL
| Part | Type | Conduit Hub Size | Conduit Hub Size | Panel Hole Size | Panel Hole Size | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Color | Material | Includes | Outside Cable Diameter (Min) [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations DB-890 | Cable Grip - 90° | 0.5 " | 12.7 mm | 7/8 | 0.875 in, 22.2 mm | 0.25 in | 6.35 mm | 9.53 mm | 0.375 " | Silver | Metal Alloy | Compression Nut, Strain Relief | |
Amphenol Industrial Operations DB-7 | Cable Grip | 0.5 " | 12.7 mm | 7/8 | 0.875 in, 22.2 mm | 0.125 in | 3.18 mm | 6.35 mm | 0.25 in | Silver | Aluminum | Compression Nut, Strain Relief | |
Amphenol Industrial Operations DB-11 | |||||||||||||
Amphenol Industrial Operations DB-338 | Cable Grip | 0.5 " | 12.7 mm | 7/8 | 0.875 in, 22.2 mm | 0.312 in | 9.53 mm | 0.375 " | Silver | Aluminum | Compression Nut, Strain Relief | 7.93 mm | |
Amphenol Industrial Operations DB-33 |
Description
General part information
- Series
Cable Grip Aluminum Silver
Documents
Technical documentation and resources
No documents available
