03-622.011

Active

EAO

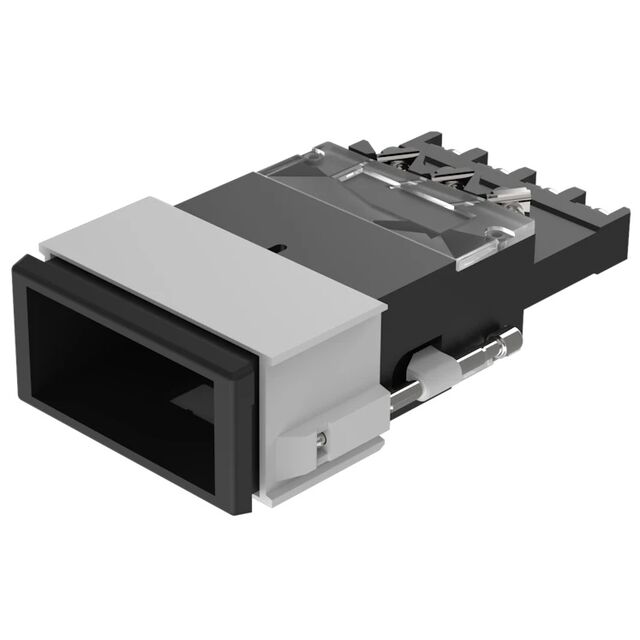

PUSHBUTTON TWO-PART MAIN SA 2DC SCREW 24X48 SILVER ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

EAO

PUSHBUTTON TWO-PART MAIN SA 2DC SCREW 24X48 SILVER ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	03-622.011	03-622 Series

	-	-
Actuator Marking	No Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)	Rectangular, Button (Not Included)
Circuit	DPDT	DPDT
Current Rating (Amps)	10 A	10 A
Ingress Protection	IP40	IP40
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [x]	41.2 mm	41.2 mm
Panel Cutout Dimensions [y]	21.2 mm	21.2 mm
Switch Function	On-On	On-On
Termination Style	Screw Terminal	Screw Terminal
Type	Standard	Standard
Voltage Rating - AC	400 V	400 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

PUSHBUTTON TWO-PART MAIN SA 2DC SCREW 24X48 SILVER ROHS COMPLIANT: YES

Part	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Switch Function	Termination Style	Circuit	Actuator Type	Mechanical Life	Voltage Rating - AC	Ingress Protection	Actuator Marking
EAO 03-622.011
EAO 03-622.011	Panel Mount, Front	41.2 mm	21.2 mm	10 A	55 °C	-25 °C	Standard	On-On	Screw Terminal	DPDT	Rectangular, Button (Not Included)	1000000 Cycles	400 V	IP40	No Marking

General part information

Pushbutton Switch DPDT Standard Panel Mount, Front
