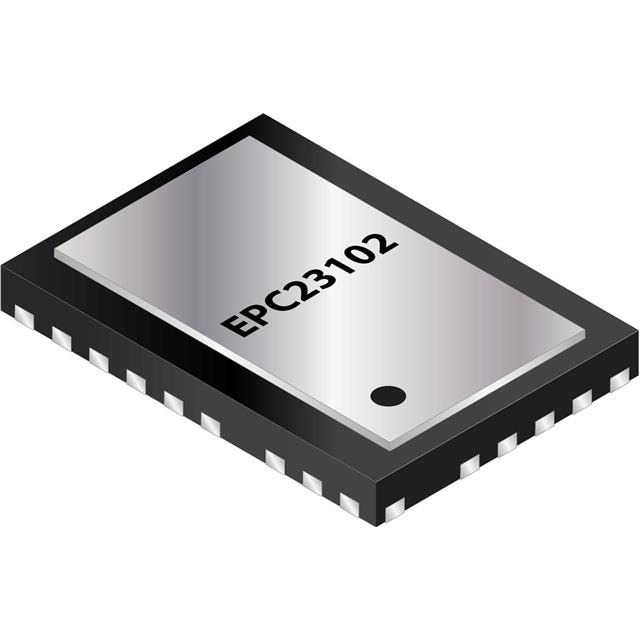

EPC23102ENGRT
ActiveEfficient Power Conversion Corporation
IC HALF BRIDGE DRIVER 35A 13WQFN
Deep-Dive with AI
Search across all available documentation for this part.
EPC23102ENGRT
ActiveEfficient Power Conversion Corporation
IC HALF BRIDGE DRIVER 35A 13WQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EPC23102ENGRT |
|---|---|
| Applications | AC Motors, DC Motors, General Purpose, DC-DC Converters |
| Current - Output / Channel | 35 A |
| Fault Protection | ESD, Over Voltage, Current Limiting, UVLO |
| Features | Bootstrap Circuit |
| Interface | Logic, PWM |
| Load Type | Capacitive, Inductive, Resistive |
| Mounting Type | Wettable Flank, Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 13-PowerWFQFN |
| Rds On (Typ) | 5.2 mOhm, 5.2 mOhm |
| Technology | Gallium Nitride (GaN) FETs |
| Voltage - Load [Max] | 80 V |
| Voltage - Load [Min] | 10 V |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.65 | |
| 10 | $ 7.82 | |||
| 25 | $ 7.45 | |||
| 100 | $ 6.47 | |||
| 250 | $ 6.18 | |||
| 500 | $ 5.64 | |||
| 1000 | $ 4.91 | |||
| Digi-Reel® | 1 | $ 8.65 | ||
| 10 | $ 7.82 | |||
| 25 | $ 7.45 | |||
| 100 | $ 6.47 | |||
| 250 | $ 6.18 | |||
| 500 | $ 5.64 | |||
| 1000 | $ 4.91 | |||
| Tape & Reel (TR) | 3000 | $ 4.73 | ||
Description
General part information
EPC23102ENGRT
Half Bridge Driver AC Motors, DC Motors, DC-DC Converters, General Purpose Gallium Nitride (GaN) FETs 13-WQFN-HR (3.5x5)
