2408841-4
ActiveTE Connectivity AMP Connectors
CONTACT, PIN, CRIMP, 12AWG ROHS COMPLIANT: YES
2408841-4
ActiveTE Connectivity AMP Connectors
CONTACT, PIN, CRIMP, 12AWG ROHS COMPLIANT: YES
Description
General part information
2408841-4

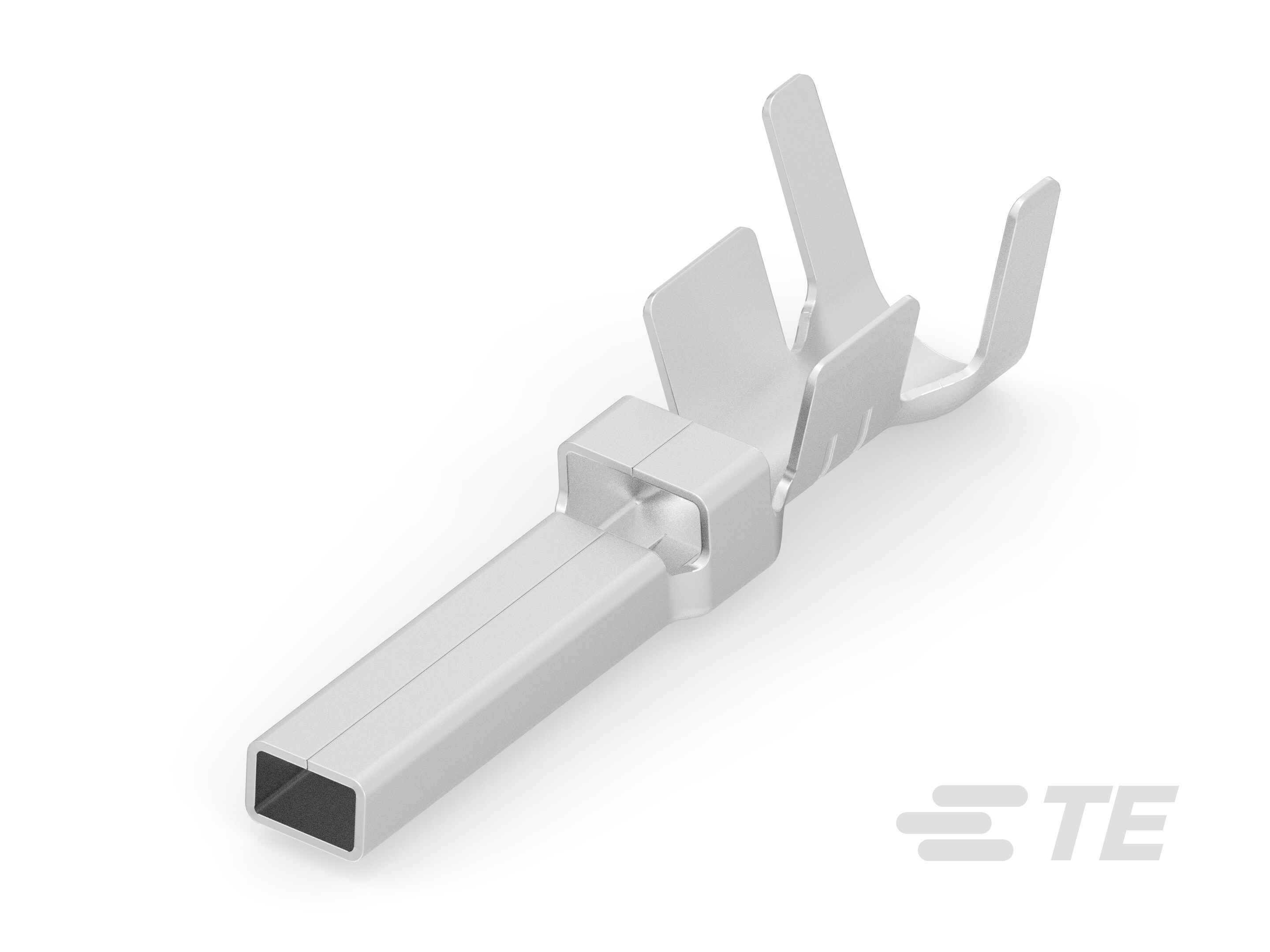

Pin Contact, Tin over Nickel, 600 VAC, 12 AWG, 2.5 – 4 mm² Wire, Crimp, Copper Alloy, Power, -25 – 90 °C [-13 – 194 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 2408841-4 |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
ENG_CD_2408841_A.pdf
HIGH-CURRENT-INTERCONNECT-CONNECTOR-SYSTEM
Product Specification for HCI 6.2mm Pitch wire to wire & wire to board Connectors
Qualification Test Report for HCI 6.2mm Pitch wire to wire & wire to board Connectors
Application Specification for HCI 6.2mm Pitch wire to wire & wire to board Connectors
Datasheet
2408841-4 | Datasheet
