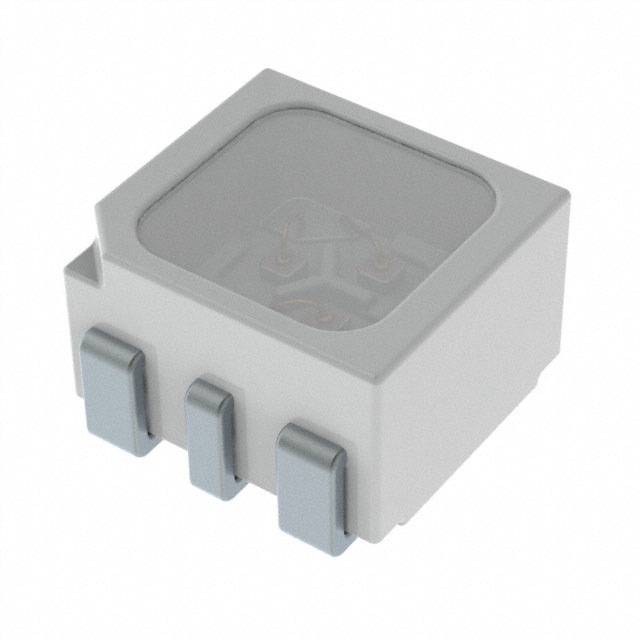

LRTBGVSG-UJVD-23+ANAP-35+TFTH-OQ-20-S-DN
Obsoleteams-OSRAM USA INC.
LED RGB 6PLCC SMD
LRTBGVSG-UJVD-23+ANAP-35+TFTH-OQ-20-S-DN
Obsoleteams-OSRAM USA INC.
LED RGB 6PLCC SMD
Description
General part information
LRTBGVSG-UJVD-23+ANAP-35+TFTH-OQ-20-S-DN
Red, Green, Blue (RGB) 625nm Red, 526nm Green, 468nm Blue LED Indication - Discrete 2.05V Red, 3.2V Green, 2.85V Blue 6-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | LRTBGVSG-UJVD-23+ANAP-35+TFTH-OQ-20-S-DN |
|---|---|
| Color | Blue (RGB), Green, Red |
| Configuration | Independent |
| Current - Test (Blue) | 20 mA |
| Current - Test (Green) | 20 mA |
| Current - Test (Red) | 20 mA |
| Current - Test Colors | Red, Blue, Green |
| Height (Max) | 2 mm |
| Lens Length | 2.9 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Width | 2.6 mm |
| Millicandela Rating (Blue) | 404 mcd |
| Millicandela Rating (Green) | 1612.5 mcd |
| Millicandela Rating (Red) | 809 mcd |
| Millicandela Rating Colors | Red, Blue, Green |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, J-Lead |
| Package Name | 6-PLCC |
| Size / Dimension Length | 3.3 mm |
| Size / Dimension Width | 3 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) (Blue) | 2.85 V |
| Voltage - Forward (Vf) (Typ) (Green) | 3.2 V |
| Voltage - Forward (Vf) (Typ) (Red) | 2.05 V |
| Voltage - Forward (Vf) (Typ) Color | Red, Blue, Green |
| Wavelength - Dominant (Blue) | 468 nm |
| Wavelength - Dominant (Green) | 526 nm |
| Wavelength - Dominant (Red) | 625 nm |
| Wavelength - Dominant Color | Green, Blue, Red |
| Wavelength - Peak (Blue) | 455 nm |
| Wavelength - Peak (Green) | 523 nm |
| Wavelength - Peak (Red) | 632 nm |
| Wavelength - Peak Colors | Green, Blue, Red |
