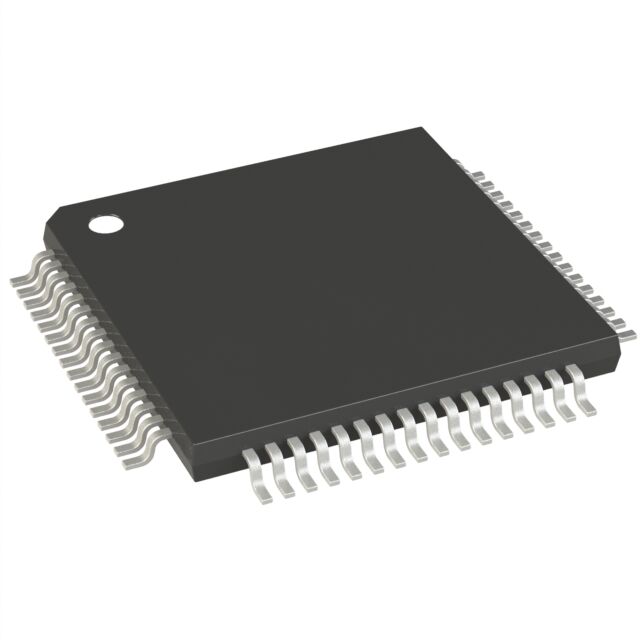

CY8C4126AZS-M445T

Active

Infineon Technologies

IC MCU 32BIT 64KB FLASH 64LQFP

Deep-Dive with AI

Search across all available documentation for this part.

CY8C4126AZS-M445T

Active

Infineon Technologies

IC MCU 32BIT 64KB FLASH 64LQFP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY8C4126AZS-M445T

Connectivity	FIFO, LINbus, SmartCard, Microwire, I2C, UART/USART, IrDA, SSP, SPI
Core Processor	ARM® Cortex®-M0
Core Size	32-Bit
Data Converters	SAR
Data Converters	12 b
Data Converters [custom]	16
Grade	Automotive
Mounting Type	Surface Mount
Number of I/O	51
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	64-LQFP
Peripherals	CapSense, LVD, DMA, LCD, WDT, PWM, POR, Brown-out Detect/Reset
Program Memory Size	64 KB
Program Memory Type	FLASH
Qualification	AEC-Q100
RAM Size	8 K
Speed	24 MHz
Supplier Device Package	64-TQFP (10x10)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	1.71 V

CY8C4126 Series

Part	Program Memory Type	Oscillator Type	Package / Case	Speed	Data Converters	Operating Temperature [Max]	Operating Temperature [Min]	Core Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Core Processor	Program Memory Size	Supplier Device Package	Peripherals	Connectivity	Mounting Type	RAM Size	Number of I/O	Qualification	Grade	Data Converters	Data Converters [custom]	RAM Size	EEPROM Size
Infineon Technologies CY8C4126AXI-S455	FLASH	Internal	64-LQFP	24 MHz	A/D 16x10b A/D 16x12b SAR D/A 2x7b	85 °C	-40 °C	32-Bit Single-Core	1.71 V	5.5 V	ARM® Cortex®-M0+	64 KB	64-TQFP	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	Surface Mount	8 K	54
Infineon Technologies CY8C4126AZS-M445T	FLASH	Internal	64-LQFP	24 MHz	SAR	105 °C	-40 °C	32-Bit	1.71 V	5.5 V	ARM® Cortex®-M0	64 KB	64-TQFP (10x10)	Brown-out Detect/Reset CapSense DMA LCD LVD POR PWM WDT	FIFO I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	Surface Mount	8 K	51	AEC-Q100	Automotive	12 b	16
Infineon Technologies CY8C4126AZE-S455T	FLASH	External Internal	64-LQFP	24 MHz	16x10b 20x12b SAR	125 °C	-40 °C	32-Bit	1.71 V	5.5 V	ARM® Cortex®-M0+	64 KB	64-TQFP (10x10)	Brown-out Detect/Reset CapSense DMA LCD POR PWM Temp Sensor WDT	FIFO I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	Surface Mount	8 K	54	AEC-Q100	Automotive
Infineon Technologies CY8C4126AZI-S445	FLASH	Internal	64-LQFP	24 MHz	A/D 16x10b Slope A/D 16x12b SAR D/A 2xIDAC	85 °C	-40 °C	32-Bit Single-Core	1.71 V	5.5 V	ARM® Cortex®-M0+	64 KB	64-TQFP (10x10)	Brown-out Detect/Reset CapSense LCD POR PWM WDT	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	Surface Mount	8 K	54
Infineon Technologies CY8C4126AZI-M443	FLASH	Internal	48-LQFP	24 MHz	2xIDAC A/D 16x12b SAR	85 °C	-40 °C	32-Bit Single-Core	1.71 V	5.5 V	ARM® Cortex®-M0	64 KB	48-TQFP (7x7)	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	Surface Mount	8 K
Infineon Technologies CY8C4126LCE-HV413T	FLASH	Internal	32-VFQFN Exposed Pad	24.576 MHz		125 °C	-40 °C	32-Bit			ARM® Cortex®-M0+	64 KB	32-QFN (6x6)	Brown-out Detect/Reset DMA POR PWM Temp Sensor WDT	I2C IrDA LINbus SPI UART/USART	Surface Mount Wettable Flank		9 I/O	AEC-Q100	Automotive			4K x 8	8 K
Infineon Technologies CY8C4126LQE-S453	FLASH	Internal	40-UFQFN Exposed Pad	24 MHz	16x10b 20x12b SAR	125 °C	-40 °C	32-Bit	1.71 V	5.5 V	ARM® Cortex®-M0+	64 KB	40-QFN (6x6)	Brown-out Detect/Reset CapSense LCD POR PWM WDT	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	Surface Mount Wettable Flank	8 K	34	AEC-Q100	Automotive
Infineon Technologies CY8C4126AZI-S455	FLASH	Internal	64-LQFP	24 MHz	A/D 16x10b Slope A/D 16x12b SAR D/A 2xIDAC	85 °C	-40 °C	32-Bit Single-Core	1.71 V	5.5 V	ARM® Cortex®-M0+	64 KB	64-TQFP (10x10)	Brown-out Detect/Reset CapSense LCD POR PWM WDT	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	Surface Mount	8 K	54
Infineon Technologies CY8C4126LCE-HV403	FLASH	Internal	32-VFQFN Exposed Pad	24.576 MHz		125 °C	-40 °C	32-Bit			ARM® Cortex®-M0+	64 KB	32-QFN (6x6)	Brown-out Detect/Reset DMA POR PWM Temp Sensor WDT	I2C IrDA LINbus SPI UART/USART	Surface Mount Wettable Flank		9 I/O	AEC-Q100	Automotive			4K x 8	8 K
Infineon Technologies CY8C4126AZQ-S423	FLASH	Internal	48-LQFP	24 MHz	A/D 16x10b A/D 16x12b SAR D/A 2x7b	105 °C	-40 °C	32-Bit Single-Core	1.71 V	5.5 V	ARM® Cortex®-M0+	64 KB	48-TQFP (7x7)	Brown-out Detect/Reset CapSense LCD LVD POR PWM WDT	I2C IrDA LINbus Microwire SmartCard SPI SSP UART/USART	Surface Mount	8 K	36

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1500	$ 5.10

Description

General part information

CY8C4126 Series

ARM® Cortex®-M0 PSOC™ 4 CY8C4100M Plus Microcontroller IC 32-Bit 24MHz 64KB (64K x 8) FLASH 64-TQFP (10x10)

Documents

Technical documentation and resources

No documents available
