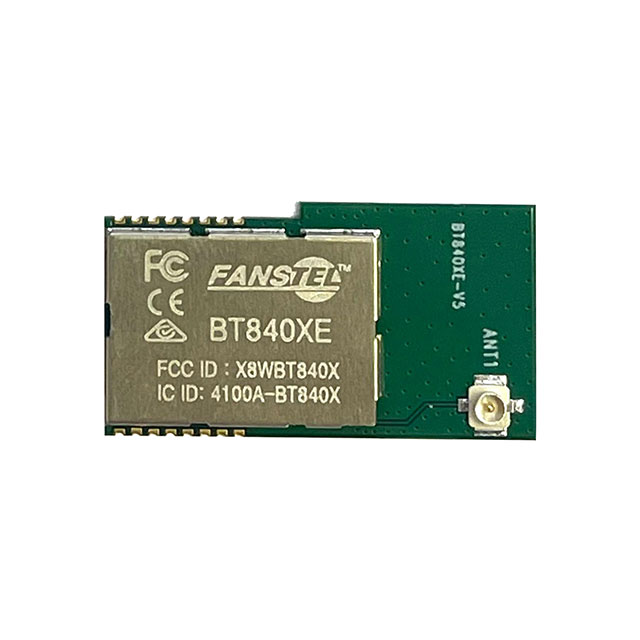

BT840XE

Active

Fanstel Corp.

RF TXRX MOD 802.15.4 BTU.FL SMD

Search across all available documentation for this part.

Active

Fanstel Corp.

RF TXRX MOD 802.15.4 BTU.FL SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BT840XE	BT840 Series

Antenna Type	Antenna Not Included, U.FL	Antenna Not Included, U.FL, Integrated, Trace, PCB Trace
Data Rate	2 Mbps	2 - 12 Mbps
For Use With/Related Products	-	BT840F, BT840E
Frequency	2.4 GHz	2.4 GHz
Memory Size	1 MB, 256 kB	1 - 256 MB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	16-SMD Module	16-SMD Module
Power - Output	21 dBm	8 - 21 dBm
Protocol	Zigbee®, Thread, Bluetooth v5.0	Zigbee®, Thread, Bluetooth v5.0, Zigbee
RF Family/Standard	Bluetooth, 802.15.4	Bluetooth, 802.15.4
Serial Interfaces	UART, ADC, GPIO, USB, PWM, I2C, SPI, I2S	USB, SPI, UART, ADC, GPIO, PWM, I2C, I2S
Supplied Contents	-	Board(s)
Type	-	Transceiver, Bluetooth® 5.x (BLE)
Utilized IC / Part	nRF52840-QIAA	nRF52840, nRF52840-QIAA
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	1.7 V	1.7 V

EVALUATION BOARD FOR BT840F BLUE

Part	Supplied Contents	Frequency	For Use With/Related Products	Type	Data Rate	Package / Case	Serial Interfaces	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Voltage - Supply [Max]	Voltage - Supply [Min]	Power - Output	Protocol	Memory Size	Mounting Type	Utilized IC / Part
Fanstel Corp. EV-BT840F	Board(s)	2.4 GHz	BT840F	Bluetooth® 5.x (BLE), Transceiver
Fanstel Corp. EV-BT840	Board(s)	2.4 GHz		Bluetooth® 5.x (BLE), Transceiver
Fanstel Corp. EV-BT840E	Board(s)	2.4 GHz	BT840E	Bluetooth® 5.x (BLE), Transceiver
Fanstel Corp. BT840E		2.4 GHz			12 Mbps	16-SMD Module	SPI, USB	Antenna Not Included, U.FL	85 °C	-40 °C	802.15.4, Bluetooth	5.5 V	1.7 V	8 dBm	Bluetooth v5.0, Thread, Zigbee®	1 MB, 256 kB	Surface Mount	nRF52840
Fanstel Corp. BT840F		2.4 GHz			12 Mbps	16-SMD Module	SPI, USB	Integrated, Trace	85 °C	-40 °C	802.15.4, Bluetooth	5.5 V	1.7 V	8 dBm	Bluetooth v5.0, Thread, Zigbee®	1 MB, 256 kB	Surface Mount	nRF52840
Fanstel Corp. BT840XE		2.4 GHz			2 Mbps	16-SMD Module	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	Antenna Not Included, U.FL	85 °C	-40 °C	802.15.4, Bluetooth	5.5 V	1.7 V	21 dBm	Bluetooth v5.0, Thread, Zigbee®	1 MB, 256 kB	Surface Mount	nRF52840-QIAA
Fanstel Corp. BT840X		2.4 GHz			2 Mbps	16-SMD Module	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	PCB Trace	85 °C	-40 °C	802.15.4, Bluetooth	5.5 V	1.7 V	21 dBm	Bluetooth v5.0, Thread, Zigbee	1 MB, 256 kB	Surface Mount	nRF52840-QIAA
