T2060062201-000
ActiveTE Connectivity AMP Connectors
HSB-006-F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T2060062201-000
ActiveTE Connectivity AMP Connectors
HSB-006-F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T2060062201-000 |
|---|---|
| Color | Gray |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 35 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 6+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H16B |
| Termination Style | Screw |
| Voltage Rating | 690 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.20 | |
| 10 | $ 18.80 | |||
| 25 | $ 18.30 | |||
| 50 | $ 17.40 | |||
| 100 | $ 15.70 | |||
| 250 | $ 15.60 | |||
| 500 | $ 13.60 | |||
T2060 Series
HSB-006-F
| Part | Material Flammability Rating | Voltage Rating | Contact Material | Contact Finish | Number of Positions | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Current Rating (Amps) | Termination Style | Size | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2060062201-000 | UL94 V-0 | 690 V | Copper Alloy | Silver | 6+Ground | Polycarbonate (PC) | 125 °C | -40 °C | Gray | 35 A | Screw | H16B | Female |
Description
General part information
T2060 Series

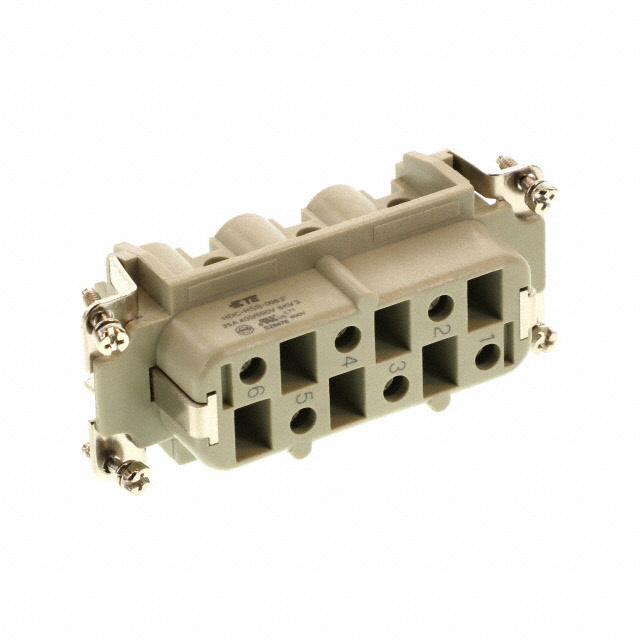

Female Insert Gray 6+Ground Position Screw
