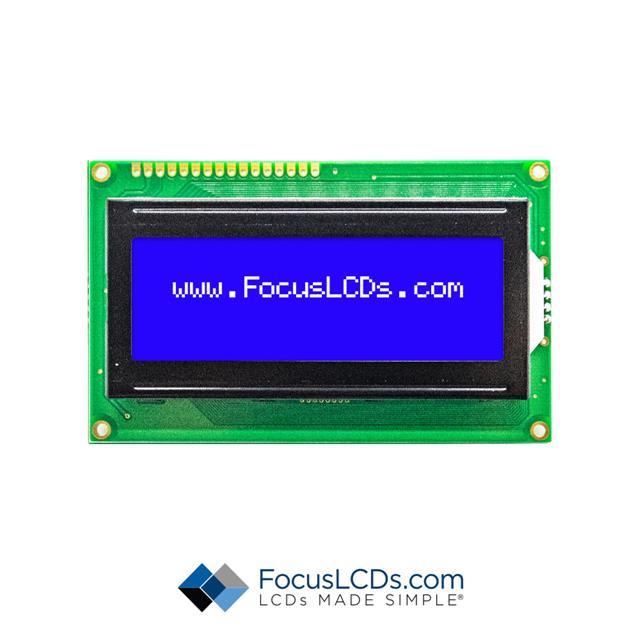

C204A-BW-LW63
ActiveFocus LCDs
20X4 STN BLUE CHARACTER LCD
C204A-BW-LW63
ActiveFocus LCDs
20X4 STN BLUE CHARACTER LCD
Description
General part information
C204A-BW-LW63
Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 98.00mm x 60.00mm x 13.50mm
Technical Specifications
Parameters and characteristics for this part
| Specification | C204A-BW-LW63 |
|---|---|
| Background Color | Blue |
| Backlight Color | White |
| Backlight Type | LED |
| Character Height | 4.75 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 2.95 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | ST7066U |
| Display Columns | 20 |
| Display Mode | Transmissive |
| Display Rows | 4 |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size Height | 0.55 mm |
| Dot Size Width | 0.55 mm |
| Interface | Parallel |
| Number of Characters | 80 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 13.5 mm |
| Outline Length | 98 mm |
| Outline Width | 60 mm |
| Text Color | White |
| Viewing Area Length | 76 mm |
| Viewing Area Width | 25.2 mm |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
