SWPA5020S561MT
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 560UH 200MA 9.061 OHM
SWPA5020S561MT
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 560UH 200MA 9.061 OHM
Description
General part information
SWPA5020S561MT

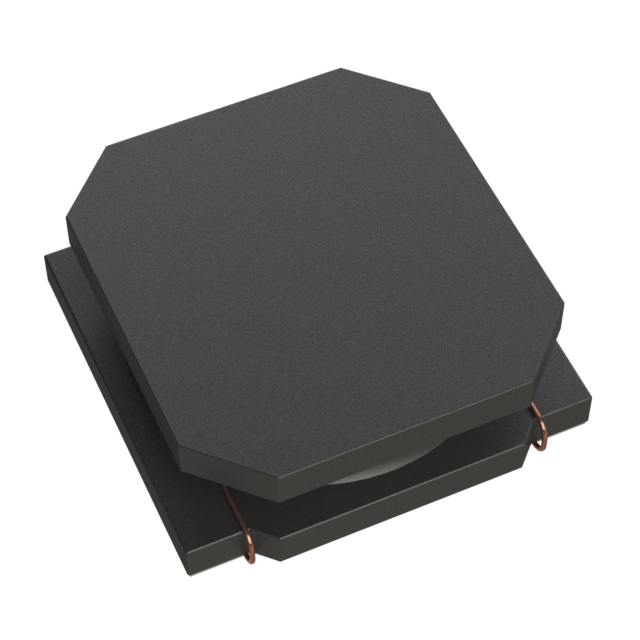

560 µH Shielded Drum Core, Wirewound Inductor 200 mA 9.061Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SWPA5020S561MT |
|---|---|
| Current - Saturation (Isat) | 0.24 mA |
| Current Rating | 0.2 A |
| DC Resistance (DCR) (Max) | 9.061 Ohm |
| Frequency - Self Resonant | 3.2 MHz |
| Height - Seated (Max) | 0.079 in |
| Inductance | 560 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.197 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
