880636-2

Active

TE Connectivity AMP Connectors

CONN QC TAB 0.250 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC TAB 0.250 CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	880636-2	880636 Series

Contact Finish	Tin	Tin
Contact Material	Brass	Brass
Gender	Male	Male
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max] [diameter]	3.71 mm	3.71 mm
Insulation Diameter [Max] [diameter]	0.146 "	0.146 "
Insulation Diameter [Min] [diameter]	2.69 mm	2.69 mm
Insulation Diameter [Min] [diameter]	0.106 in	0.106 in
Length - Overall	1.103 in	1.103 in
Length - Overall	28.02 mm	28.02 mm
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Length	15.7 mm	15.7 mm
Tab Length	0.618 in	0.618 in
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	6.35 mm	6.35 mm
Tab Width	0.25 in	0.25 in
Terminal Type	Standard	Standard
Termination	Crimp	Crimp

.250 SERIES FASTIN-

Part	Mounting Type	Contact Material	Termination	Length - Overall	Length - Overall	Gender	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Terminal Type	Tab Length	Tab Length	Tab Thickness	Tab Thickness	Insulation	Tab Width	Tab Width	Contact Finish
TE Connectivity AMP Connectors 880636-1	Free Hanging (In-Line)	Brass	Crimp	1.103 in	28.02 mm	Male	3.71 mm	2.69 mm	0.146 "	0.106 in	Standard	15.7 mm	0.618 in	0.032 in	0.81 mm	Non-Insulated	6.35 mm	0.25 in
TE Connectivity AMP Connectors 880636-2	Free Hanging (In-Line)	Brass	Crimp	1.103 in	28.02 mm	Male	3.71 mm	2.69 mm	0.146 "	0.106 in	Standard	15.7 mm	0.618 in	0.032 in	0.81 mm	Non-Insulated	6.35 mm	0.25 in	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

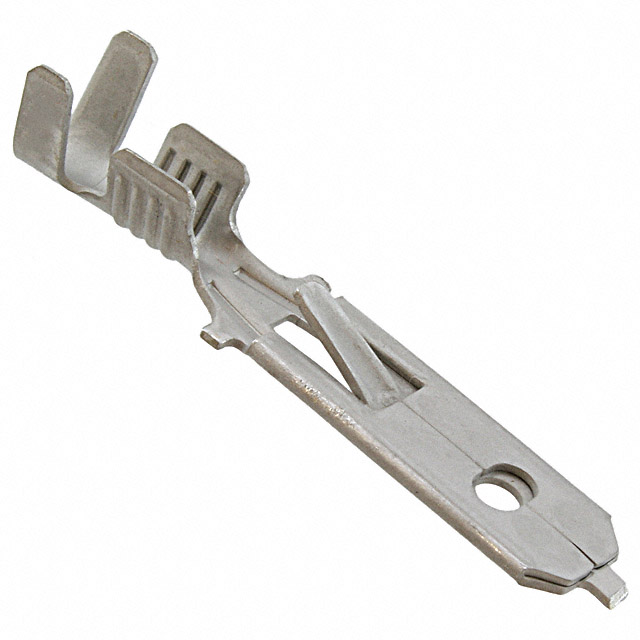

0.250" (6.35mm) Quick Connect Male Crimp Connector Non-Insulated
