ACS120-7SH

Active

STMicroelectronics

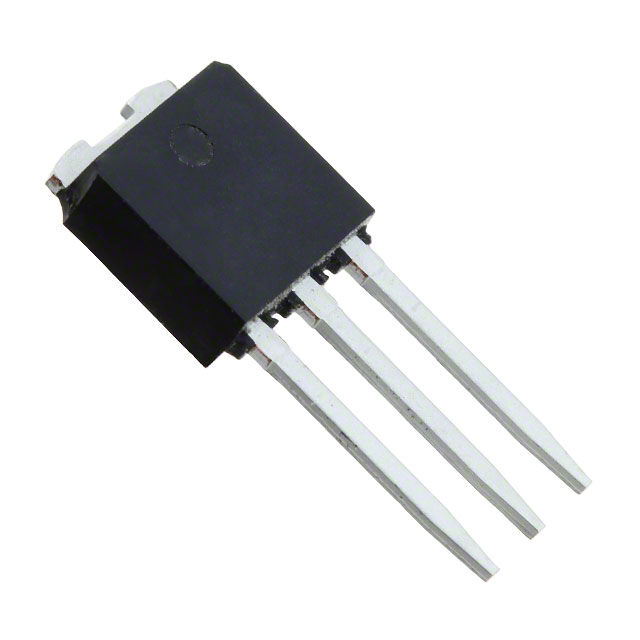

TRIAC SENS GATE 700V 2A TO251

Search across all available documentation for this part.

Active

STMicroelectronics

TRIAC SENS GATE 700V 2A TO251

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ACS120-7SH	ACS120 Series

	-	-
Configuration	Single	Single
Current - Gate Trigger (Igt) (Max) [Max]	10 mA	10 mA
Current - Hold (Ih) (Max) [Max]	45 mA	45 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	20 A, 11 A	11 - 20 A
Current - On State (It (RMS)) (Max) [Max]	2 A	2 A
Mounting Type	Through Hole	Through Hole, Surface Mount
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-30 °C	-30 °C
Package / Case	IPAK, TO-251-3 Short Leads, TO-251AA	IPAK, TO-251-3 Short Leads, TO-251AA, SC-63, DPAK (2 Leads + Tab), TO-252-3, TO-220-3
Supplier Device Package	TO-251 (IPAK)	TO-251 (IPAK), DPAK, TO-220
Triac Type	Logic - Sensitive Gate	Logic - Sensitive Gate
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V	1 V
Voltage - Off State	700 V	700 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

OVERVOLTAGE PROTECTED AC SWITCH

Part	Supplier Device Package	Configuration	Voltage - Off State	Package / Case	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Hold (Ih) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Mounting Type	Triac Type	Current - On State (It (RMS)) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
STMicroelectronics ACS120-7SB-TR
STMicroelectronics ACS120-7SB
STMicroelectronics ACS120-7SH	TO-251 (IPAK)	Single	700 V	IPAK, TO-251-3 Short Leads, TO-251AA	11 A, 20 A	45 mA	1 V	Through Hole	Logic - Sensitive Gate	2 A	10 mA	-30 °C	125 ¯C
STMicroelectronics ACS120-7SB
STMicroelectronics ACS120-7SB	DPAK	Single	700 V	DPAK (2 Leads + Tab), SC-63, TO-252-3	11 A, 20 A	45 mA	1 V	Surface Mount	Logic - Sensitive Gate	2 A	10 mA	-30 °C	125 ¯C
STMicroelectronics ACS120-7ST	TO-220	Single	700 V	TO-220-3	11 A, 20 A	45 mA	1 V	Through Hole	Logic - Sensitive Gate	2 A	10 mA	-30 °C	125 ¯C
STMicroelectronics ACS120-7SB-TR

General part information

TRIAC Logic - Sensitive Gate 700 V 2 A Through Hole TO-251 (IPAK)
