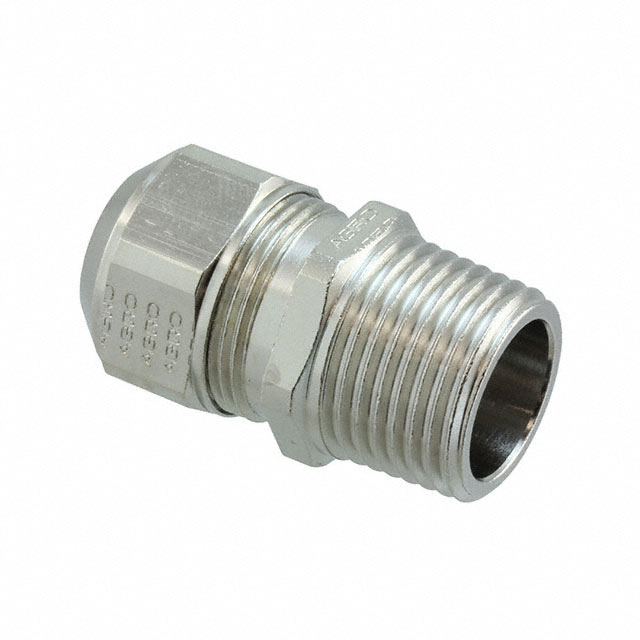

A1000.3/8NPT.105

Active

American Electrical Inc.

CABLE GLAND 8-10.5MM 3/8" NPT

Search across all available documentation for this part.

Active

American Electrical Inc.

CABLE GLAND 8-10.5MM 3/8" NPT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A1000.3/8NPT.105	1000.3/8 Series

Color	Silver	Silver
Includes	Seal	Seal
Ingress Protection	IP68, IP69K	IP68, IP69K
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	6 - 8 mm
Outside Cable Diameter (Max)	-	0.236 - 0.315 in
Outside Cable Diameter (Max) [Max]	0.413 in	0.413 in
Outside Cable Diameter (Max) [Max]	10.5 mm	10.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	8 mm	4.5 - 8 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.315 in	0.177 - 0.315 in
Thread Length	0.472 in	0.472 in
Thread Length	12 mm	12 mm
Thread Size	3/8" NPT	3/8" NPT
Type	Cable Gland	Cable Gland

CABLE GLAND 8-10.5MM 3/8" NPT

Part	Includes	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Thread Length	Thread Length	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Color	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
American Electrical Inc. A1000.3/8NPT.105	Seal	0.413 in	10.5 mm	100 °C	-40 °C	IP68, IP69K	0.472 in	12 mm	Cable Gland	8 mm	0.315 in	3/8" NPT	Silver	Brass, Nickel Plated
American Electrical Inc. A1000.3/8NPT.080	Seal			100 °C	-40 °C	IP68, IP69K	0.472 in	12 mm	Cable Gland	6 mm	0.236 in	3/8" NPT	Silver	Brass, Nickel Plated	8 mm	0.315 in
American Electrical Inc. A1000.3/8NPT.060	Seal			100 °C	-40 °C	IP68, IP69K	0.472 in	12 mm	Cable Gland	4.5 mm	0.177 in	3/8" NPT	Silver	Brass, Nickel Plated	6 mm	0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 10.04

General part information

Cable Gland Brass, Nickel Plated 3/8" NPT Silver
