1-1376385-2

Active

TE Connectivity AMP Connectors

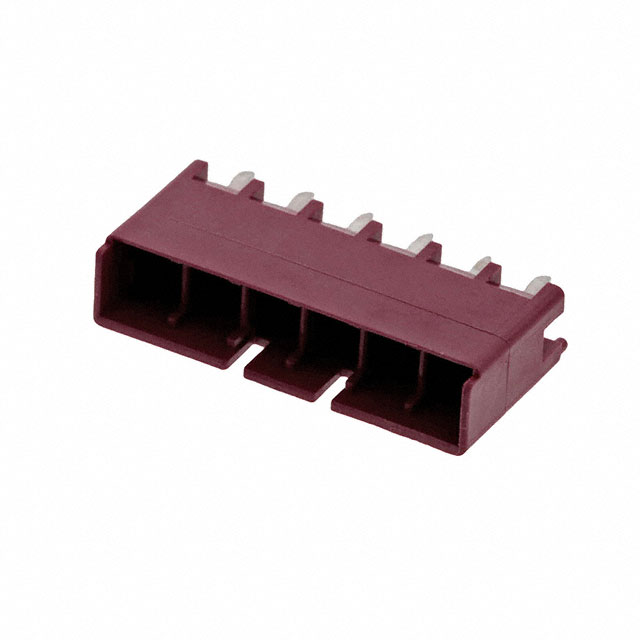

CONN HEADER VERT 6POS 5MM

Deep-Dive with AI

Search across all available documentation for this part.

1-1376385-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 6POS 5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.76
		10	$ 1.46
		100	$ 1.21
		500	$ 1.06
		1000	$ 1.00
		5000	$ 0.88
		10000	$ 0.84

Description

General part information

1376385 Series

Connector Header Through Hole 6 position 0.197" (5.00mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1376385-2	1376385 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Post	3.5 mm	3.5 mm
Contact Length - Post	0.138 in	0.138 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Rectangular	Rectangular
Contact Type	Tab	Tab
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Board Guide	Board Guide
Insulation Color	Red	Blue, Red, Natural, Yellow
Insulation Height	14.1 mm	14.1 mm
Insulation Height	0.555 in	0.555 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	19.4 mm	19.4 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	6	6
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	5 mm	5 mm
Pitch - Mating	0.197 "	0.197 "
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Kinked Pin, Solder
Voltage Rating	300 VAC	300 VAC

1376385 Series

CONN HEADER VERT 6POS 5MM

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Connector Type	Mounting Type	Contact Type	Pitch - Mating	Pitch - Mating	Contact Shape	Style	Insulation Material	Number of Positions	Current Rating (Amps)	Number of Rows	Insulation Color	Fastening Type	Material Flammability Rating	Insulation Height	Insulation Height	Voltage Rating	Termination	Applications	Contact Length - Post	Contact Length - Post	Mated Stacking Heights	Number of Positions Loaded	Contact Material	Contact Finish - Post
TE Connectivity AMP Connectors 2-1376385-3	Board Guide	-40 °C	105 ░C	Shrouded - 4 Wall	Header	Through Hole	Tab	5 mm	0.197 "	Rectangular	Board to Cable/Wire	Polyamide (PA66), Nylon 6/6, Glass Filled	6	Varies by Wire Gauge	1	Blue	Locking Ramp	UL94 V-0	14.1 mm	0.555 in	300 VAC	Kinked Pin, Solder	General Purpose	3.5 mm	0.138 in	19.4 mm	All	Copper Alloy	Tin
TE Connectivity AMP Connectors 1-1376385-2	Board Guide	-40 °C	105 ░C	Shrouded - 4 Wall	Header	Through Hole	Tab	5 mm	0.197 "	Rectangular	Board to Cable/Wire	Polyamide (PA66), Nylon 6/6, Glass Filled	6	Varies by Wire Gauge	1	Red	Locking Ramp	UL94 V-0	14.1 mm	0.555 in	300 VAC	Kinked Pin, Solder	General Purpose	3.5 mm	0.138 in	19.4 mm	All	Copper Alloy	Tin
TE Connectivity AMP Connectors 1376385-1	Board Guide	-40 °C	105 ░C	Shrouded - 4 Wall	Header	Through Hole	Tab	5 mm	0.197 "	Rectangular	Board to Cable/Wire	Polyamide (PA66), Nylon 6/6, Glass Filled	6	Varies by Wire Gauge	1	Natural	Locking Ramp	UL94 V-0	14.1 mm	0.555 in	300 VAC	Kinked Pin, Solder	General Purpose	3.5 mm	0.138 in	19.4 mm	All	Copper Alloy	Tin
TE Connectivity AMP Connectors 3-1376385-4	Board Guide	-40 °C	105 ░C	Shrouded - 4 Wall	Header	Through Hole	Tab	5 mm	0.197 "	Rectangular	Board to Cable/Wire	Polyamide (PA66), Nylon 6/6, Glass Filled	6	Varies by Wire Gauge	1	Yellow	Locking Ramp	UL94 V-0	14.1 mm	0.555 in	300 VAC	Kinked Pin, Solder	General Purpose	3.5 mm	0.138 in	19.4 mm	All	Copper Alloy	Tin
