F6-20
ActiveTriad Magnetics

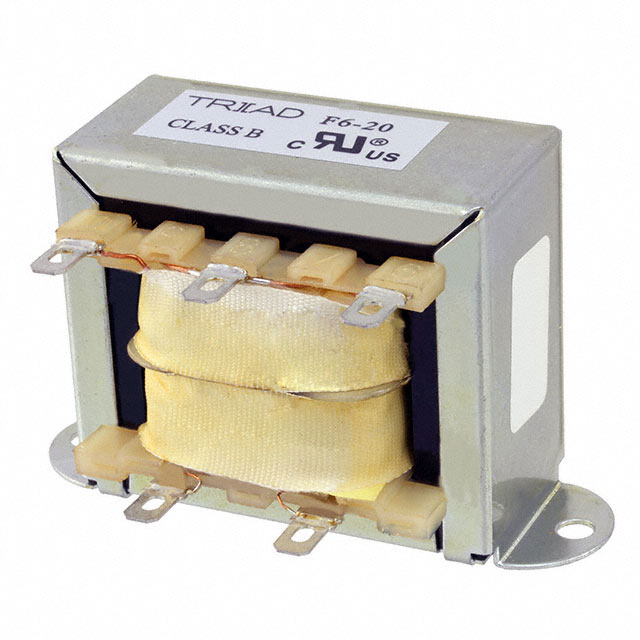

POWER XFMR 20.0VCT@1.5A UL/CUL 115V QUICK PACK W/LUGS/F6-20 ROHS COMPLIANT: YES
F6-20
ActiveTriad Magnetics
POWER XFMR 20.0VCT@1.5A UL/CUL 115V QUICK PACK W/LUGS/F6-20 ROHS COMPLIANT: YES
Description
General part information
F6-20
POWER XFMR 20.0VCT@1.5A UL/CUL 115V QUICK PACK W/LUGS/F6-20 ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | F6-20 |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) | 1.5 A |
| Height - Seated (Max) | 49.2 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 30 W |
| Primary Winding(s) | Single |
| Quick Connect Size (0.187") | 0.187 in |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 3.25 in |
| Size / Dimension Width | 42.85 mm |
| Termination Style | Solder, Quick Connect |
| Type | Laminated Core |
| Voltage - Isolation | 2500 Vrms |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 20 V |
| Weight | 1.1 lbs |
