Description
General part information

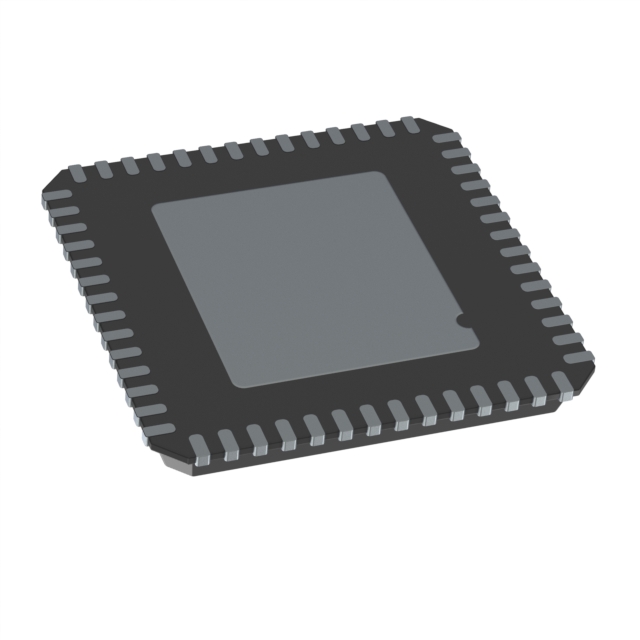

CYAT61652-56LWS41
Touchscreen Controller 2 Wire Capacitive 32 b I2C, SPI Interface 56-QFN (8x8)
Technical Specifications
Parameters and characteristics for this part
| Specification | CYAT61652-56LWS41 |
|---|---|
| Grade | Automotive |
| Interface | I2C, SPI |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 56-VFQFN Exposed Pad |
| Package Length | 8 mm |
| Package Name | 56-QFN |
| Package Width | 8 mm |
| Qualification | AEC-Q100 |
| Resolution (Bits) | 32 b |
| Touchscreen | Capacitive |
| Touchscreen Wire Count | 2 wire |
| Voltage - Supply (Range 1 Maximum) | 1.95 V |
| Voltage - Supply (Range 1 Minimum) | 1.71 V |
| Voltage - Supply (Range 2 Maximum) | 5.5 V |
| Voltage - Supply (Range 2 Minimum) | 3 V |
