Description
General part information

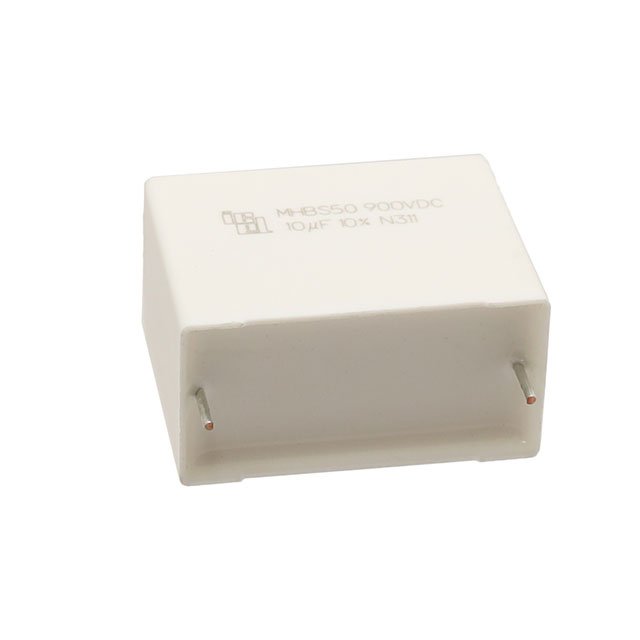

MHBS505100KJS
10 µF Film Capacitor 900V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | MHBS505100KJS |
|---|---|
| Applications | Switching, DC Link, DC Filtering, High Frequency |
| Capacitance | 10 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 6.8 mOhm |
| Height - Seated (Max) | 1.319 in |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.673 in |
| Size / Dimension Width | 0.866 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 900 V |
